The operation video of this excavator is below the specifications. ↓

Specifications

Tonnage (tons) 6

Machine operating weight (kg) 5800

Bucket width (mm) 834

Bucket capacity (m³) 0.25

Boom length (mm) 3200

Arm length (mm) 1650

Performance:

Swing speed (rpm) 10.5

Swing torque (Nm) 14.2

Travel speed (km/h) 4.3

Gradability (%) 25

Bucket digging force (kN) 39

Arm digging force (KN) 28

Power system:

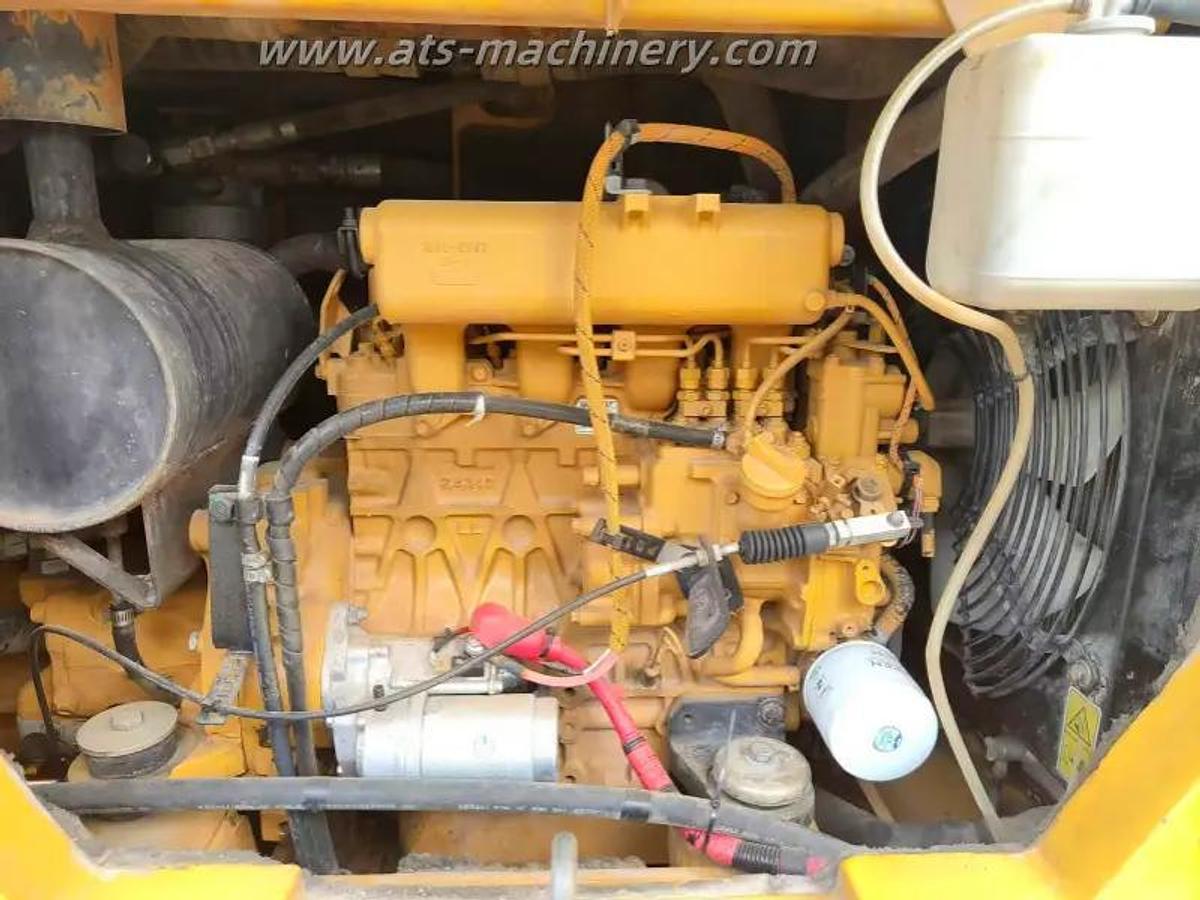

Engine model Cat C2.4 (DI Turbo)

Rated power (kw/rpm) 34.7 (47.2 hp)

Displacement (L) 2.4

Bore × stroke (mm) 87 mmx102.4 mm

Oil capacity:

Fuel tank (L) 78

Hydraulic oil tank (L) 58

Hydraulic system (L) 85

Engine oil change volume (L) 9.5

Coolant (L) 8.3

Main body dimensions:

Total transport width (mm) 1950

Total track length (mm) 2440

Track shoe width (mm) 400

Rear end swing radius (mm) 1580

Operating range:

Maximum digging radius (mm) 6090

Maximum digging depth (mm) 3870

Maximum digging height (mm) 5530

Maximum dumping height (mm) 3900

Descriptions

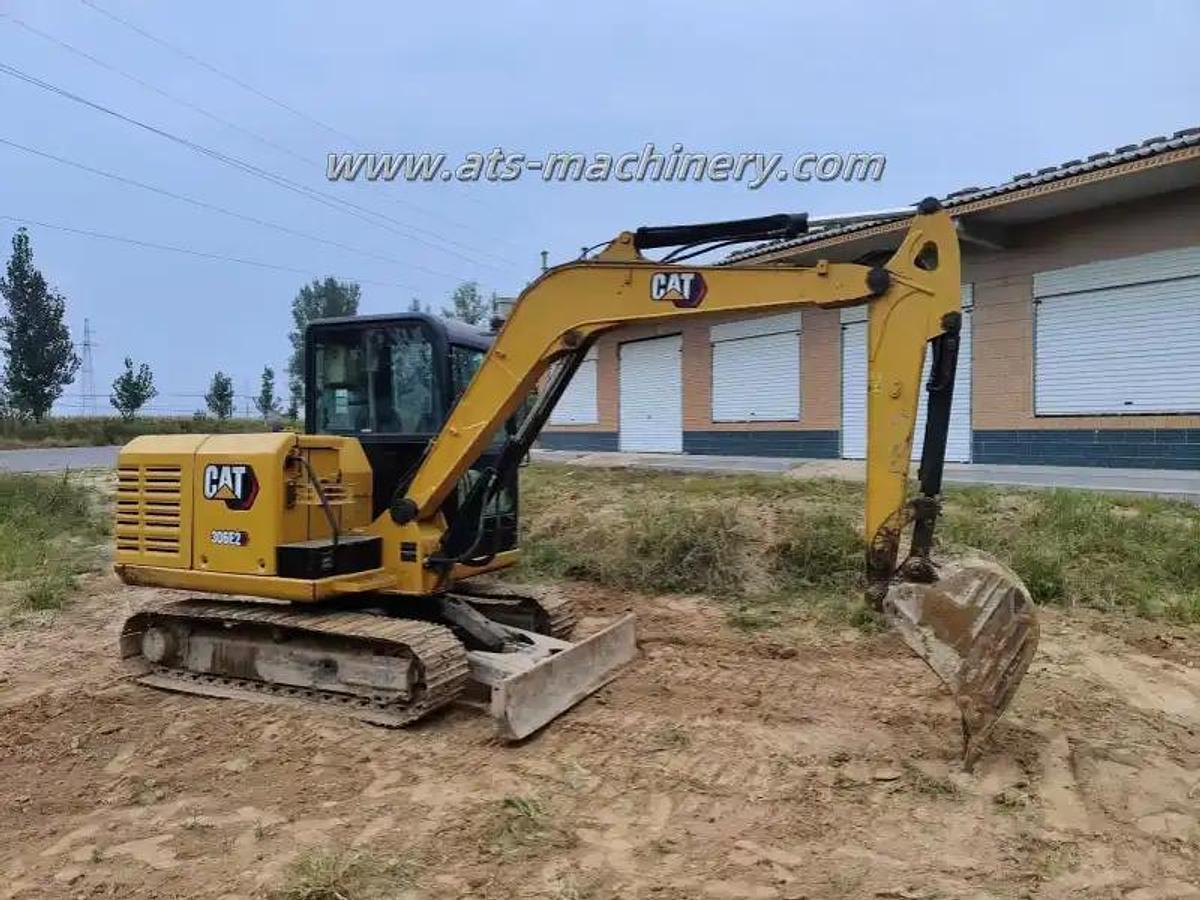

This Mini Excavator CAT306E2 delivers power and performance in a compact size to help you work in the tightest applications. Its ability to fit through a narrow doorway makes it an excellent machine for indoor demolition work.

Video:

Used excavator CAT306E2
