Specifications

Tonnage (tons) 2

Machine operating weight (kg) 2042-2205

Bucket capacity (m³) UD 0.044

Boom length (mm) 1660

Arm length (mm) 960

Performance

Slewing speed (rpm) 9.8

Travel speed (km/h) 4.4/2.9

Gradability (%) 30

Bucket digging force (kN) 19.6

Arm digging force (KN) 11.3

Maximum traction force (KN) 13.2/20

Power system

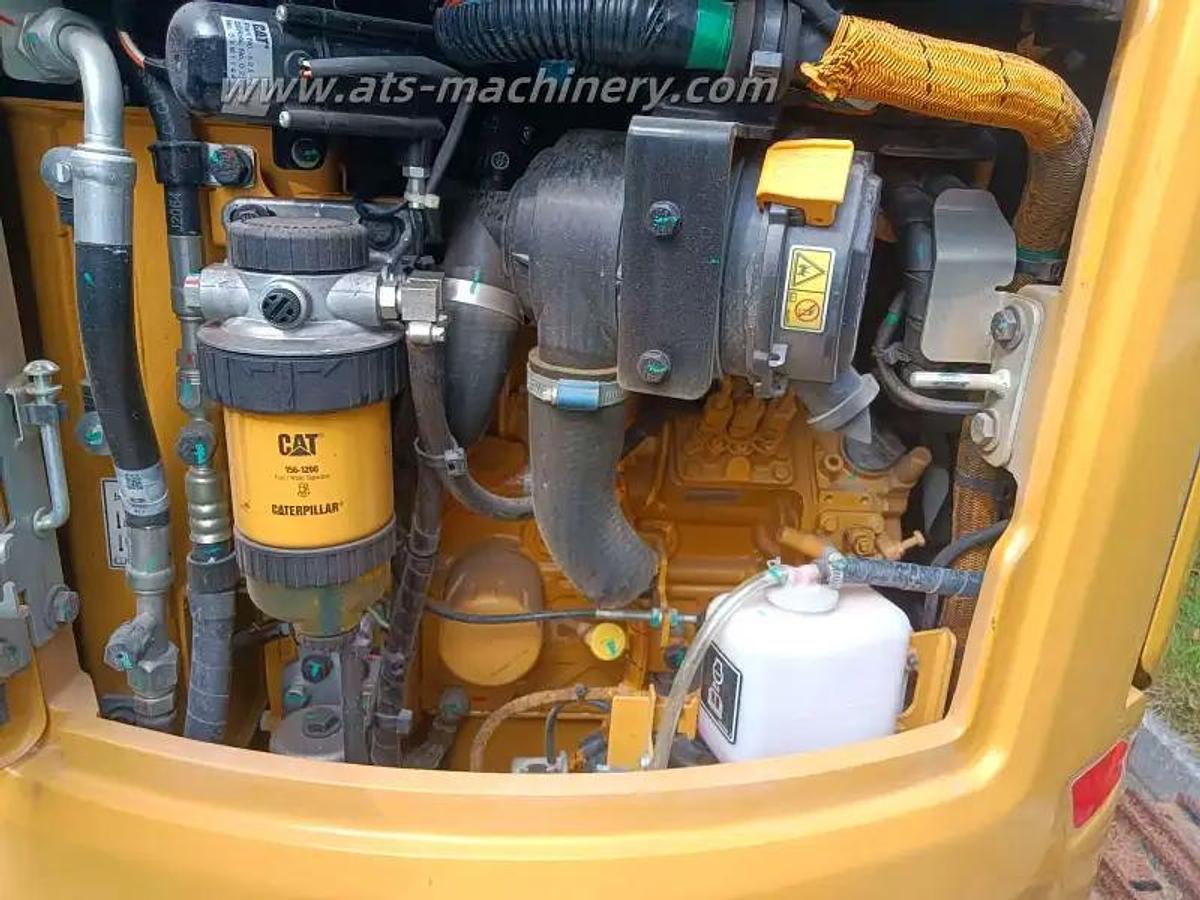

Engine model Cat® C1.1

Rated power (kw/rpm) 16.1/2400

Displacement (L) 1.1

Bore × stroke (mm) 77×81

Hydraulic system

Maximum flow of main pump (I/min) 66

Working hydraulic oil circuit (Mpa) 24.5

Travel hydraulic circuit (Mpa) 24.5

Swing hydraulic circuit (Mpa) 14.7

Oil capacity

Fuel tank (L) 26

Hydraulic oil tank (L) 18

Hydraulic system (L) 26

Engine oil change volume (L) 4.4

Coolant (L) 3.9

Main transport dimensions

Total length for transport (mm) 3900

Total height for transport (mm) 2300

Shoe width (mm) 250

Total track width (mm) 1090

Minimum ground clearance (mm) 150

Rear end swing radius (mm) 750

Operating range

Maximum digging depth (mm) 2370

Descriptions

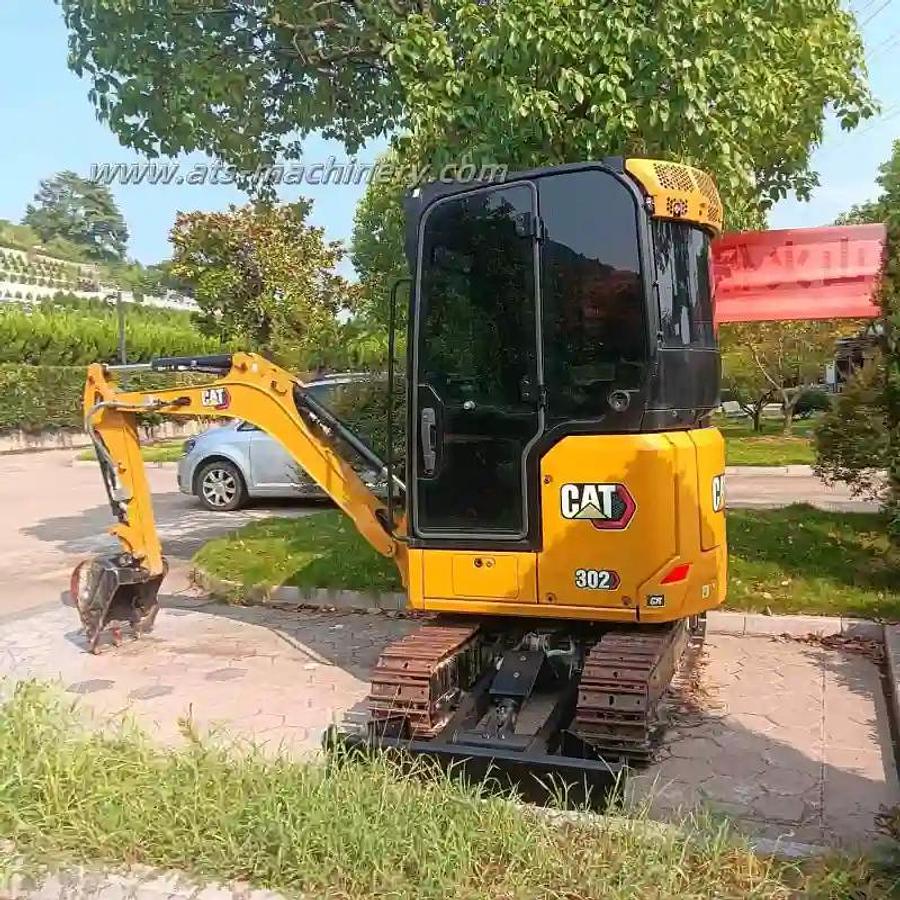

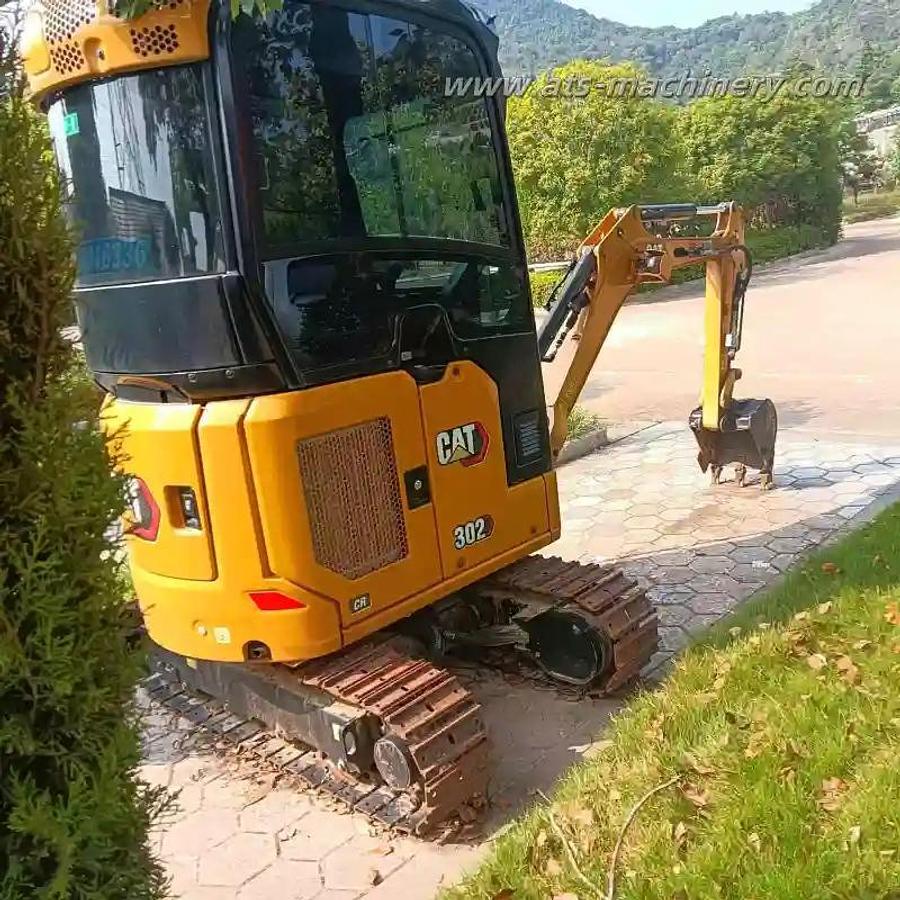

The CAT302CR excavator adopts a compact design with a small wheel spacing and turning radius, which can flexibly enter tight spaces and better adapt to various working environments. The used excavators we provide are more cost-effective.
