Specifications

Working weight of the whole machine (kg) 1951

Net power (kW/rpm) 153/1950

Bulldozer blade capacity (m³) 5.61

Climbing ability (%) 30 °

Engine

Engine model Komatsu SAA6D114E-3

Power 153/1950

Displacement (L) 8.27

Number of cylinders - cylinder diameter x stroke (n-mm x mm) 2-114 * 135

Drive system

First gear walking speed (km/h) Forward 3.6/backward 4.4

2nd gear walking speed (km/h) 5.5 forward/6.6 backward

3rd gear walking speed (km/h) 7.2 forward/8.6 backward

4-speed walking (km/h) forward 11.2/backward 13.4

Walking mechanism

Number of supporting wheels (one side) (number) 7

Number of track shoes (42 pieces)

Track shoe width (mm) 510

Tooth height (mm) 65

Track gauge (mm) 1880/2050

Track grounding length (mm) 2980

Ground specific voltage (Kpa) 55.2/52.9

Oil capacity

Fuel tank (L) 415

Engine oil (L) 28

Cooling liquid (L) 36

External dimensions

Overall length (mm) 5490

Overall width (mm) 1880

Overall height (mm) 3155

Descriptions

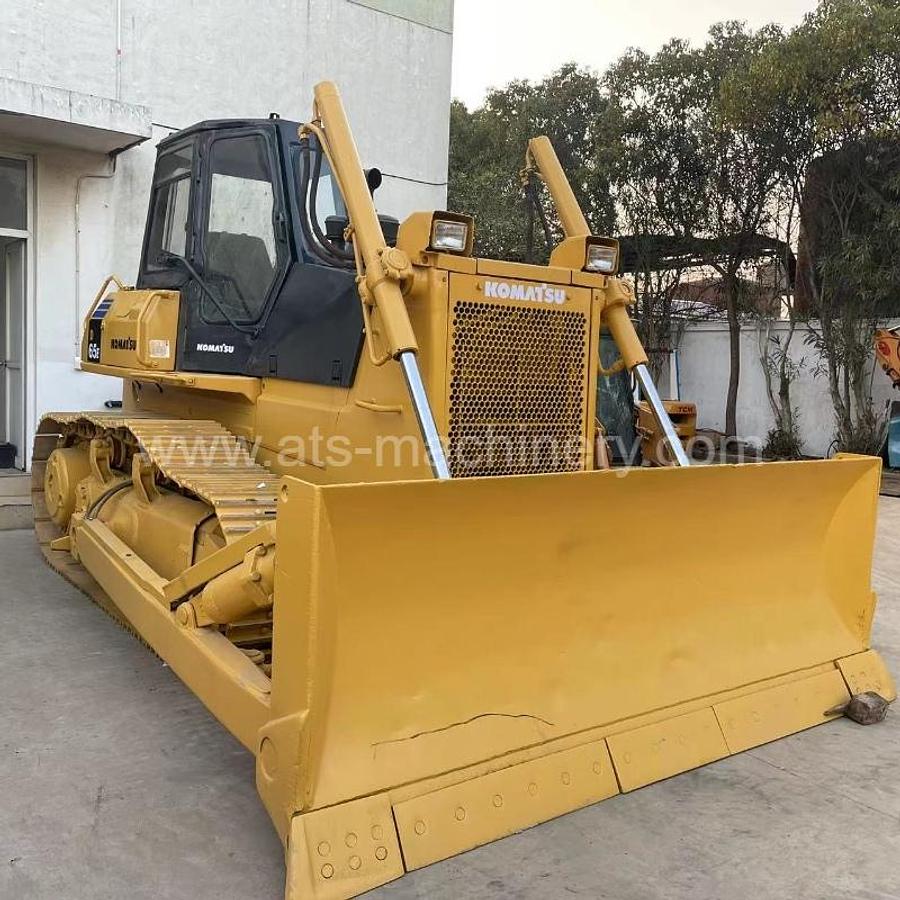

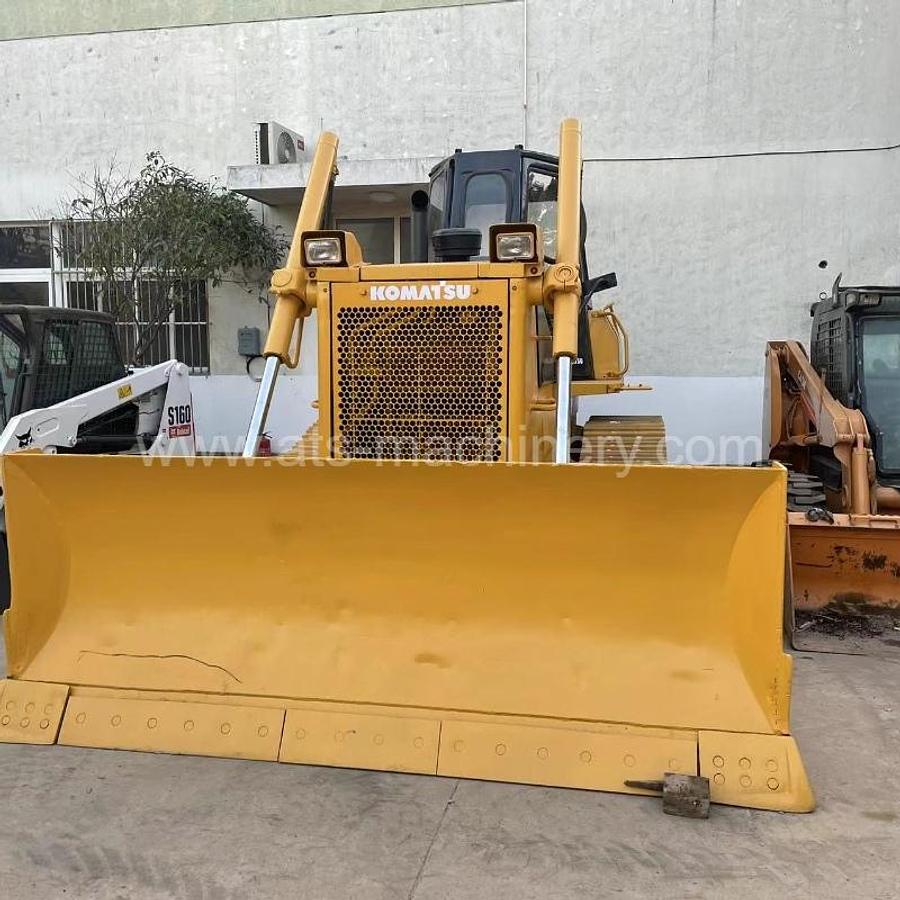

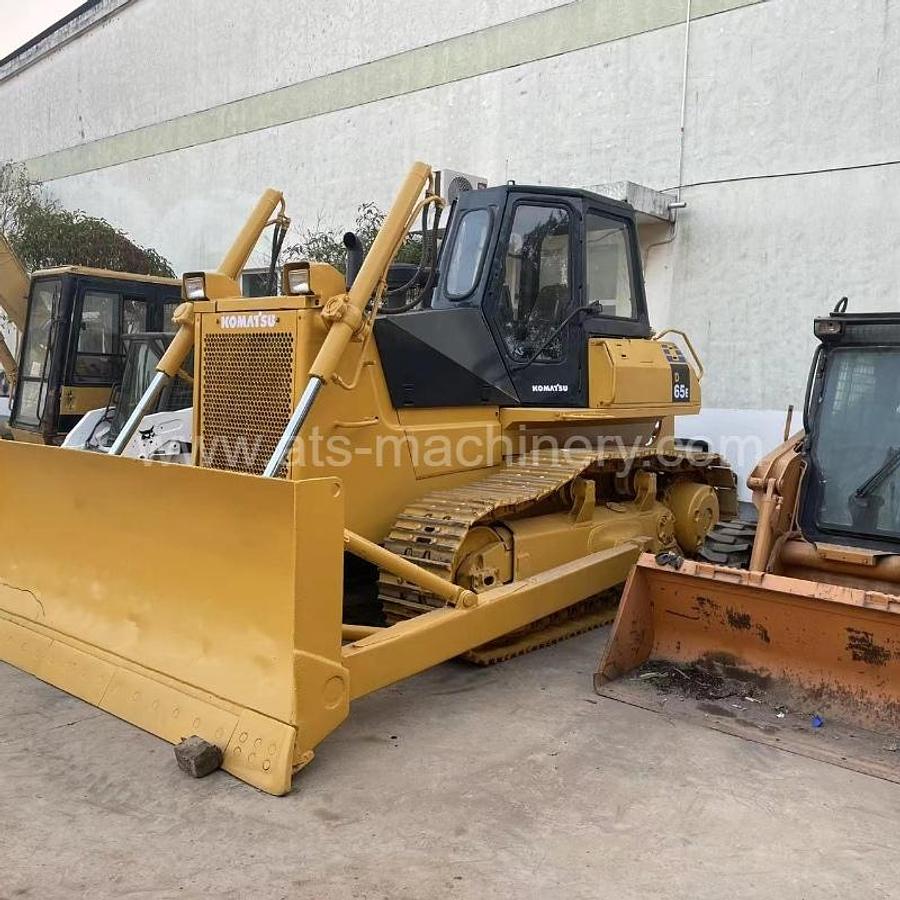

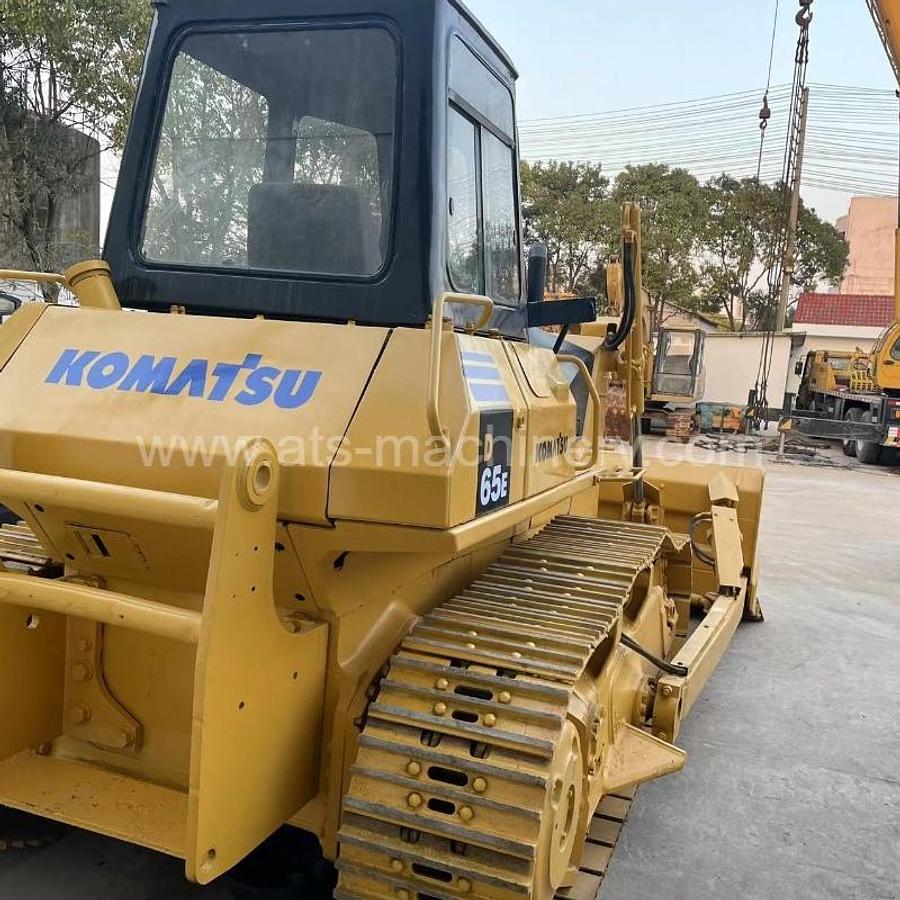

The Komatsu D65EX-17 is highly productive, reliable and efficient. It has ultra-low emissions, less impact on the environment, and superior performance, helping to reduce operating costs, allowing operators to work with complete confidence. The second-hand excavators we provide are more cost-effective.
