Specifications

Tonnage (tons) 6

Machine working weight (kg) 5595

Bucket width (mm) 680/630

Bucket capacity (m²) 0.22

Performance

Slewing speed (rpm) 9.3

Traveling speed (km/h) 2.7/4.6

Gradability (%) 30°

Bucket digging force (kN) 40.1

Power system

Engine model V2607-E3

Rated power (kw/rpm) 35.5/2200

Displacement (L) 2.615

Hydraulic system

Main pump type Variable pump 2+gear pump 2

Slewing hydraulic motor type

Piston hydraulic motor

Traveling hydraulic Motor type 2-speed plunger hydraulic motor

Oil capacity

Fuel tank (L) 68

Main transport dimensions

Total length for transportation (mm) 5500

Total width for transportation (mm) 1960

Total height for transportation (mm) 2550

Operating range

Maximum digging radius (mm) 6140

Maximum digging depth (mm) 3690

Maximum digging height (mm) 5685

Maximum unloading height (mm) 3950

Maximum vertical digging depth (mm) 2685

Bulldozer blade width × height (mm) 1960*410

Bulldozer blade lifting or pushing depth (mm) 440/405

Descriptions

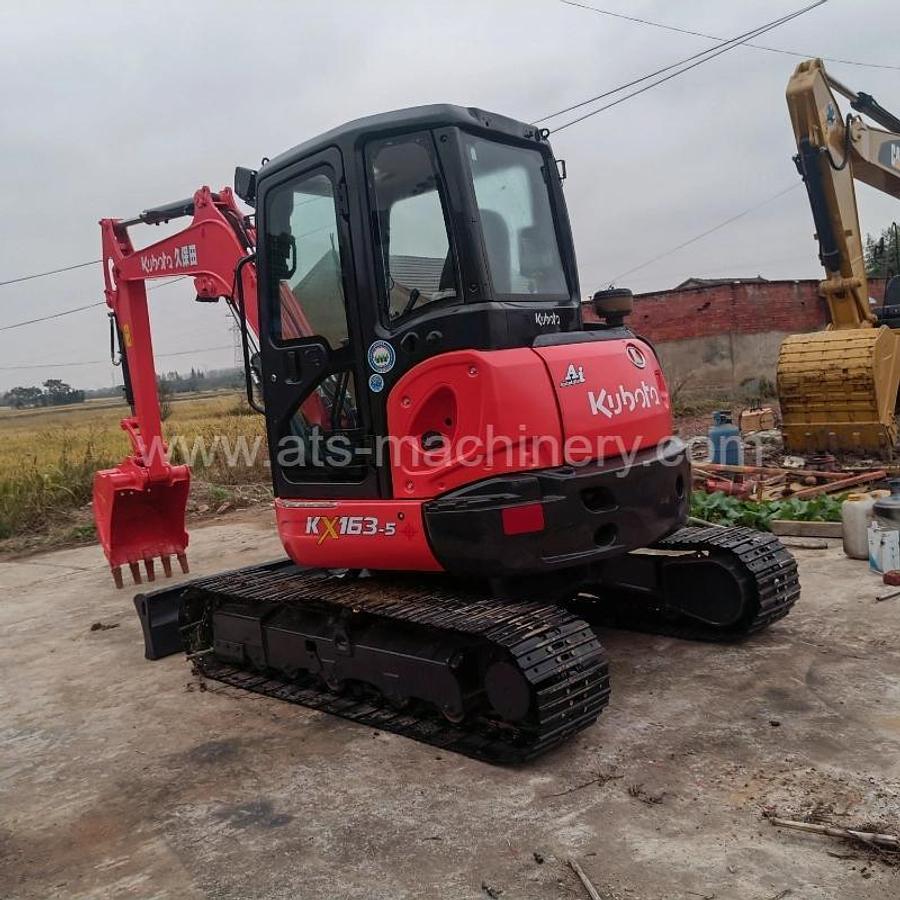

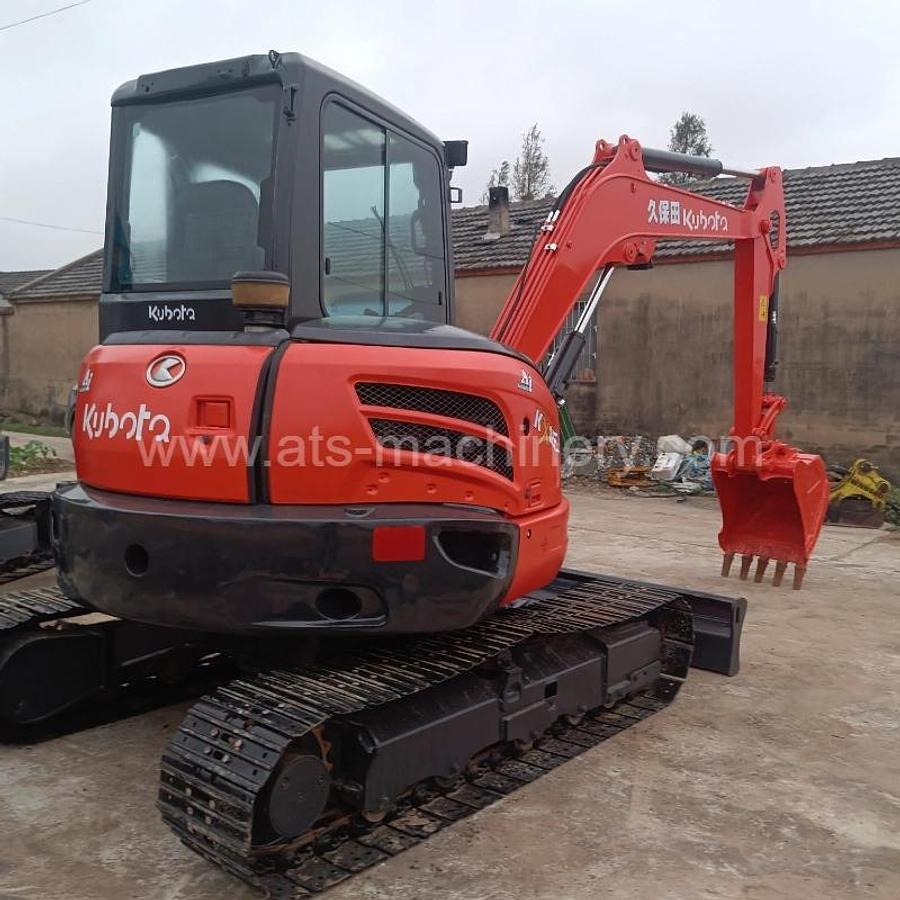

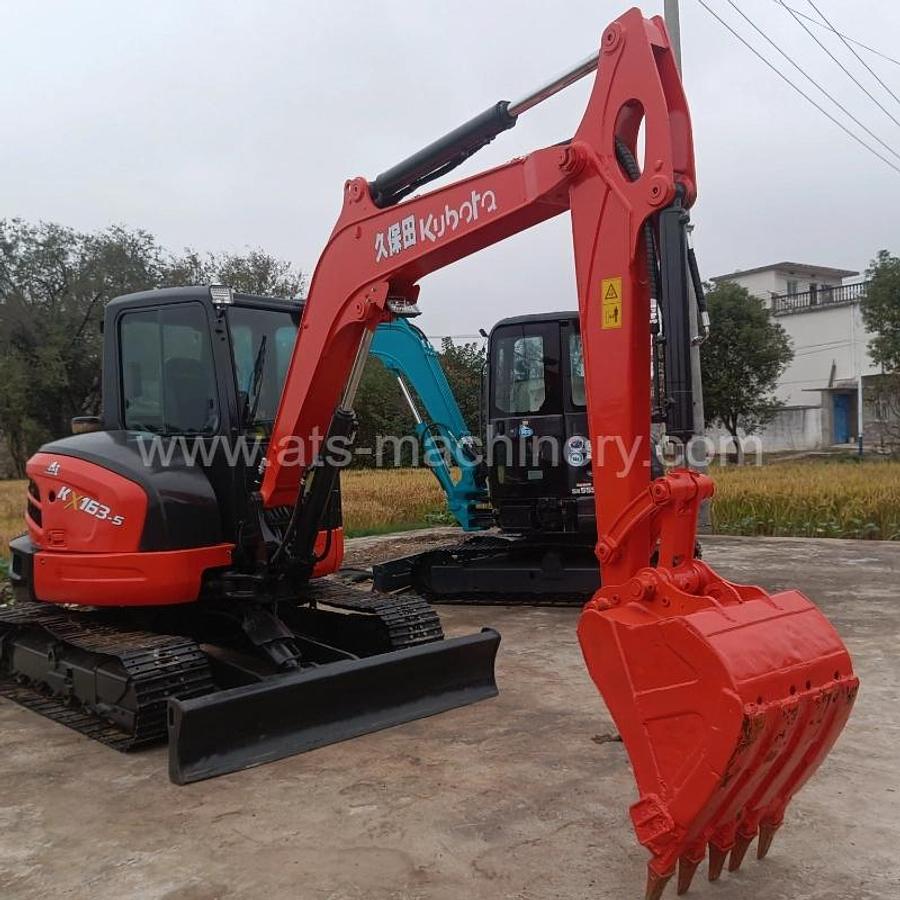

KUBOTA KX163 with whole new paint, hammer line, manual quick coupler, rubber tracks, condition is same as pictures and videos show.

We can customize any excavator as client's style, we have our own maintenance workshop and mechanic.

We also have our professional loading platform and loading team, can load the machine in good condition by container, flat rack.
