Specifications

Tonnage (tons) 5

Operating weight of the whole machine (kg) 5320

Bucket capacity (m³) 0.16

Performance

Slewing speed (rpm) 10

Travel speed (km/h) 4.4/2.3

Ground pressure (Kpa) 28.8

Bucket digging force (KN) 33.8

Arm digging force (KN) 22.5

Power system

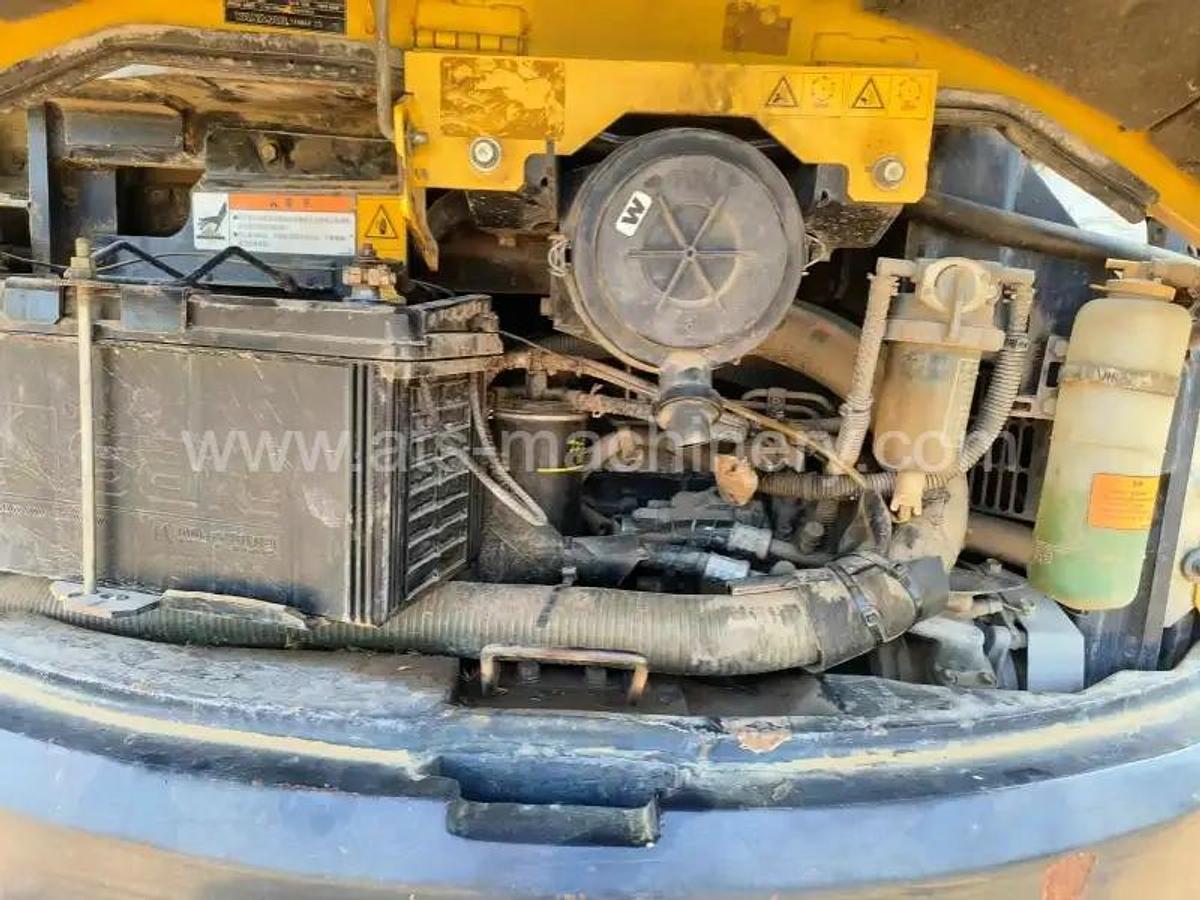

Engine model Yanmar 4TNV88-

Rated power (kw/rpm) 28.8/2400

Cooling method Water cooling

Oil capacity

Fuel tank (L) 64

Main transport dimensions

Total length for transportation (mm) 5560

Total width for transportation (mm) 1990

Total height for transportation (mm) 2620

Operating range

Maximum digging radius of parking surface (mm) 4160

Maximum digging depth (mm) 3980

Maximum digging height (mm) 6440

Maximum unloading height (mm) 4400

Descriptions

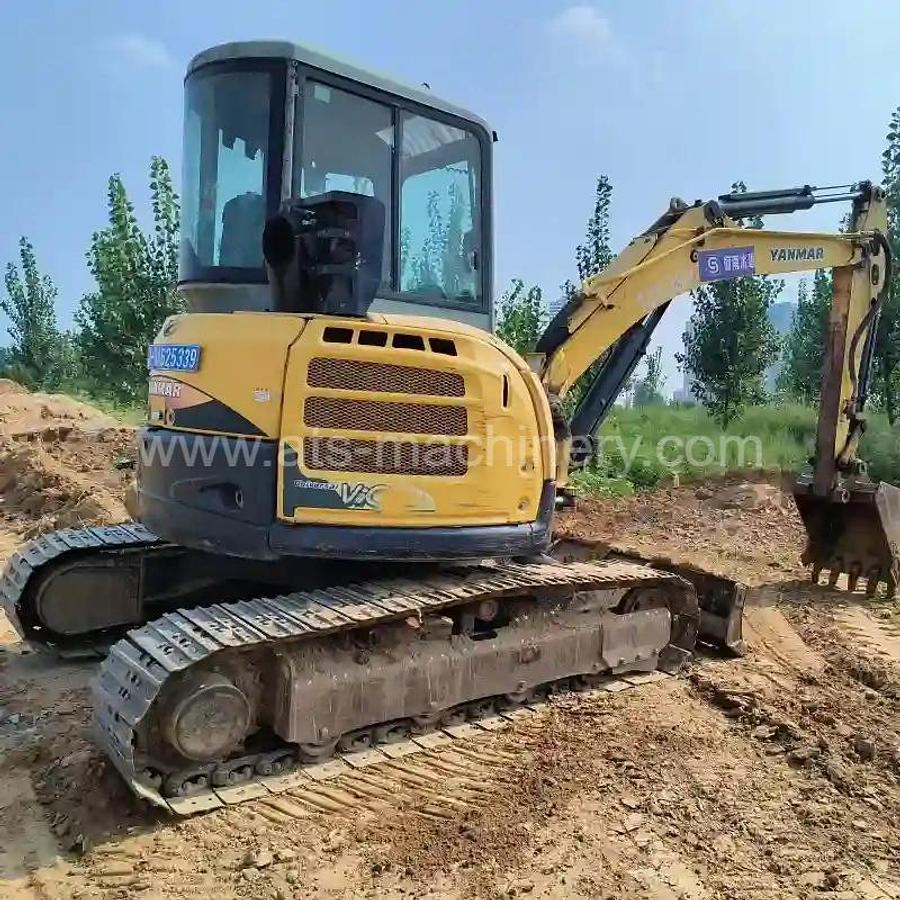

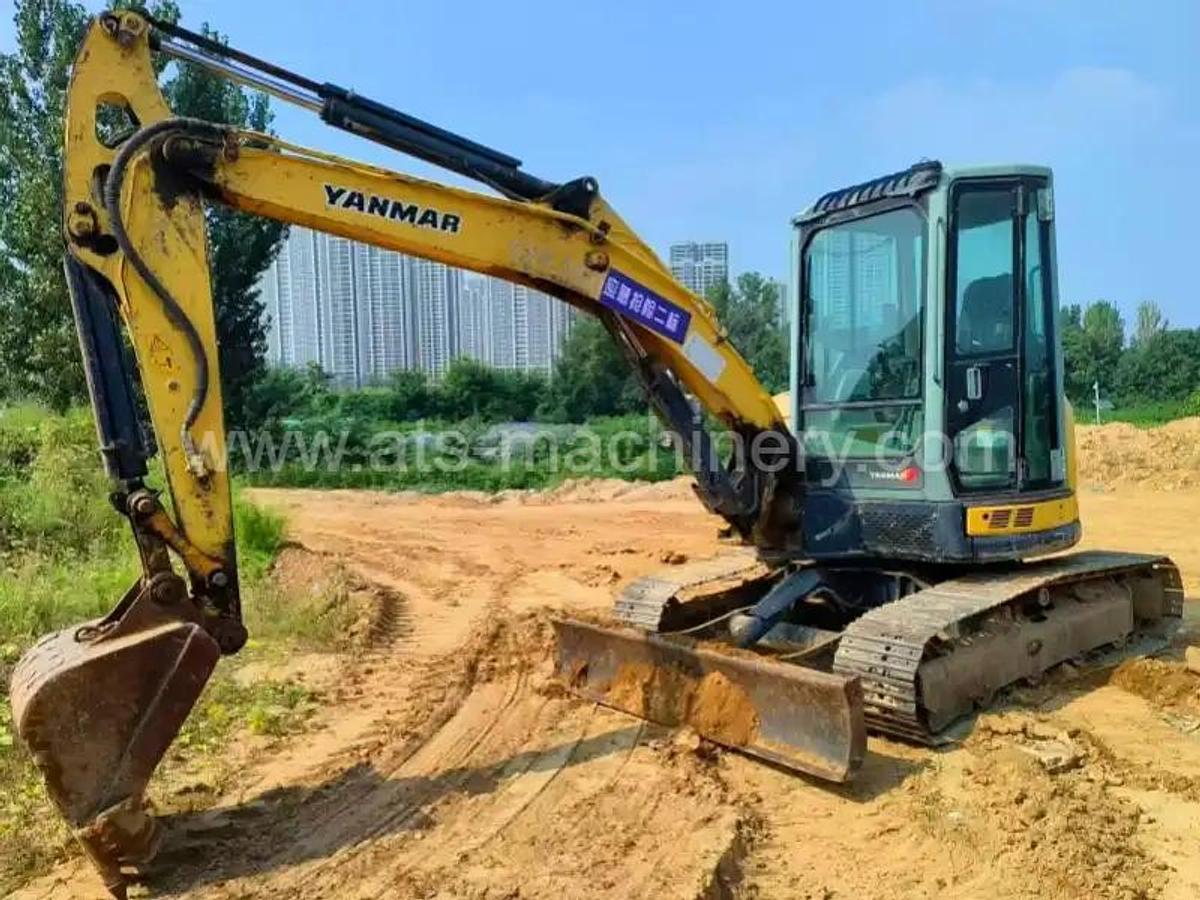

The Yanmar 55-5 excavator not only has good flexibility and stability, but also has high fuel economy and convenient operation. It is suitable for various construction conditions and is easy to repair and maintain. It is an excavator with superior performance.
