Specifications

Tonnage (tons) 8

Machine operating weight (kg) 7960

Bucket capacity (m³) 0.3

Bucket width (mm) 800

Power system

Engine model 4TNV98-ZWBV2

Rated power (kw/rpm) 40.7/2000

Working mode Vertical water-cooled four-stroke direct injection engine

Performance

Ground pressure (Kpa) 34.8

Slewing speed (rpm) 9

Bucket digging force (KN) 63.5

Digging force of bucket arm (kN) 40.8

Travel speed (km/h) 4.1/2.3

Hydraulic system

Main overflow set pressure (Mpa) 25.5

Oil capacity

Fuel tank (L) 115

Main transport dimensions

Total length for transportation (mm) 6410

Total width for transportation (mm) 2260

Total height for transportation (mm) 2680

Track shoe width (mm) 450

Operating range

Bulldozer lifting or pushing depth (mm) 440, 500

Bulldozer blade width × height (mm) 2260*450

Boom rotation angle (left/right °) 57/60

Descriptions

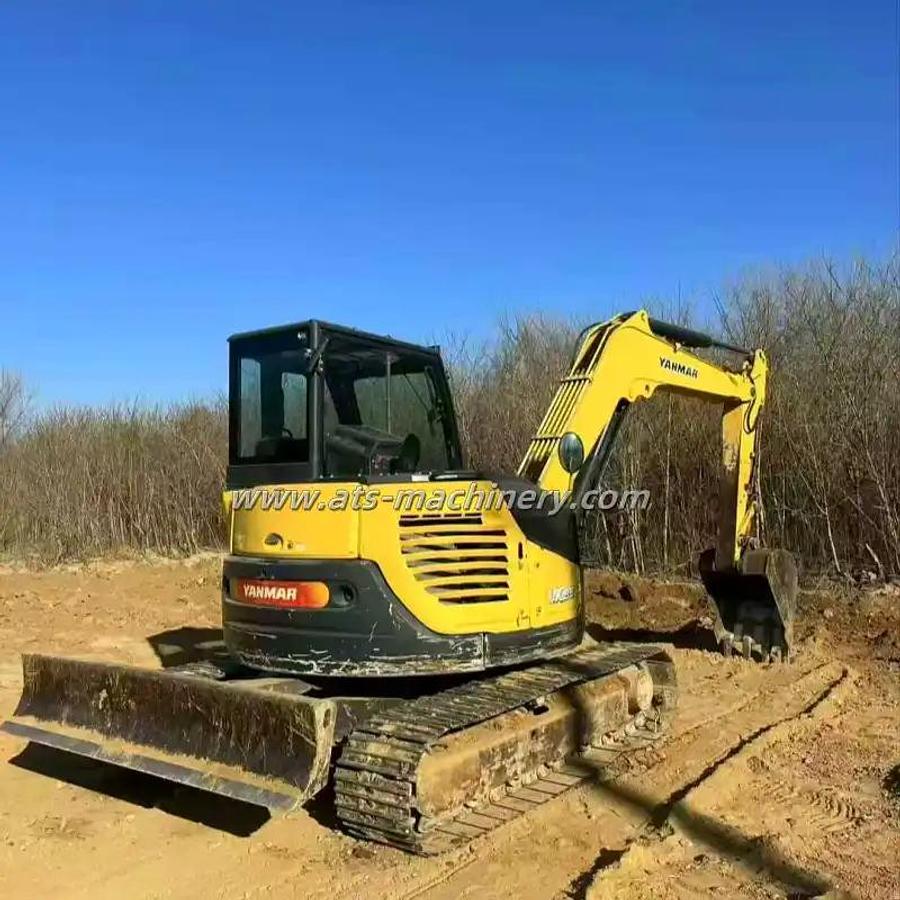

Yanmar 85 excavator has the advantages of compactness and flexibility, powerful power, high-precision operation, comfortable cab and convenient maintenance, and can efficiently complete excavation work in various engineering projects.
