Specifications

Bucket capacity (m³) 1.53-2.5

Rated load (tons) 3-5 tons

Rated load (kg) 3000

Digging force (kN) 120

Operating weight of the whole machine (kg) 9700

Length of the whole machine (mm) 7162

Width of the whole machine (mm) 2354

Height of the whole machine (mm) 3051

Gearbox

Travel speed 1st gear (km/h) 7.4

Travel speed 2nd gear (km/h) 13.6

Travel speed 3rd gear (km/h) 26

Travel speed 4th gear (km/h) 39

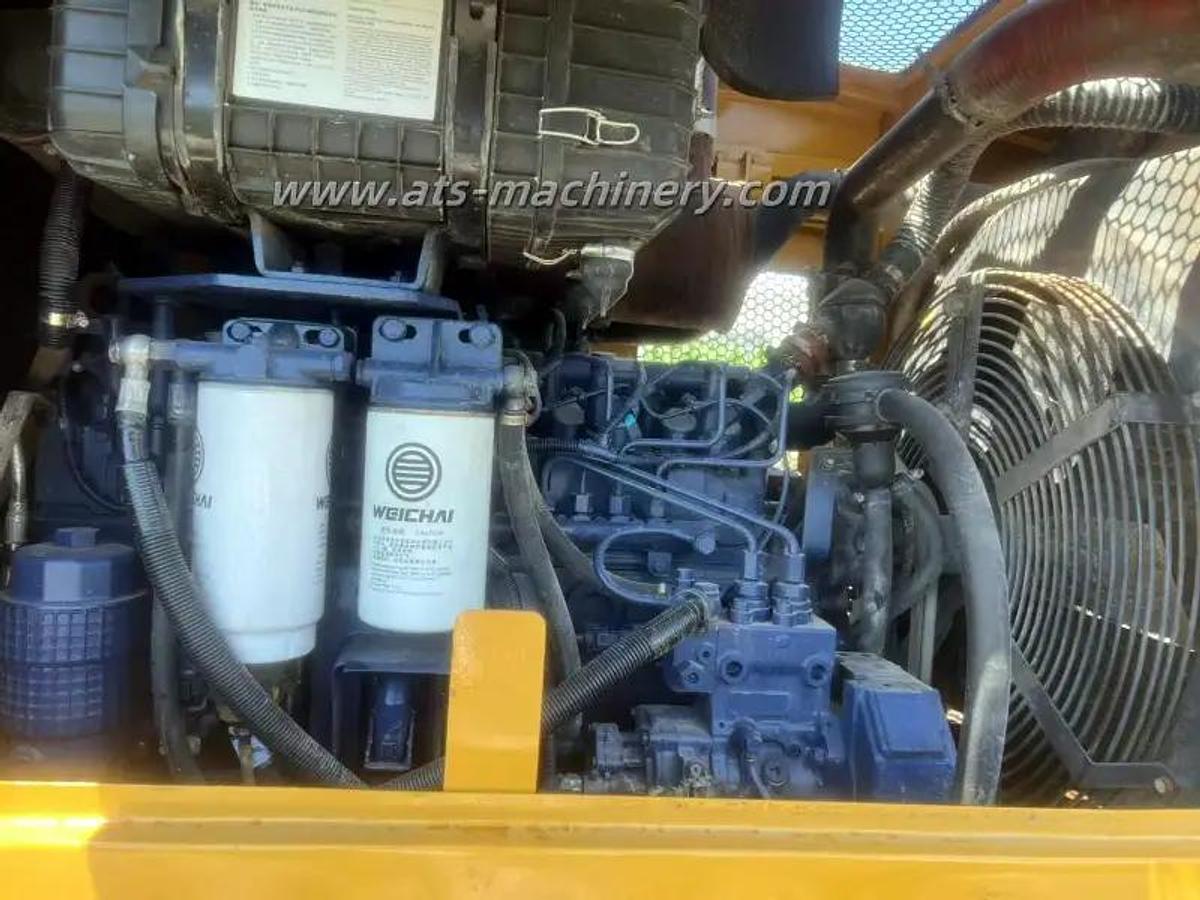

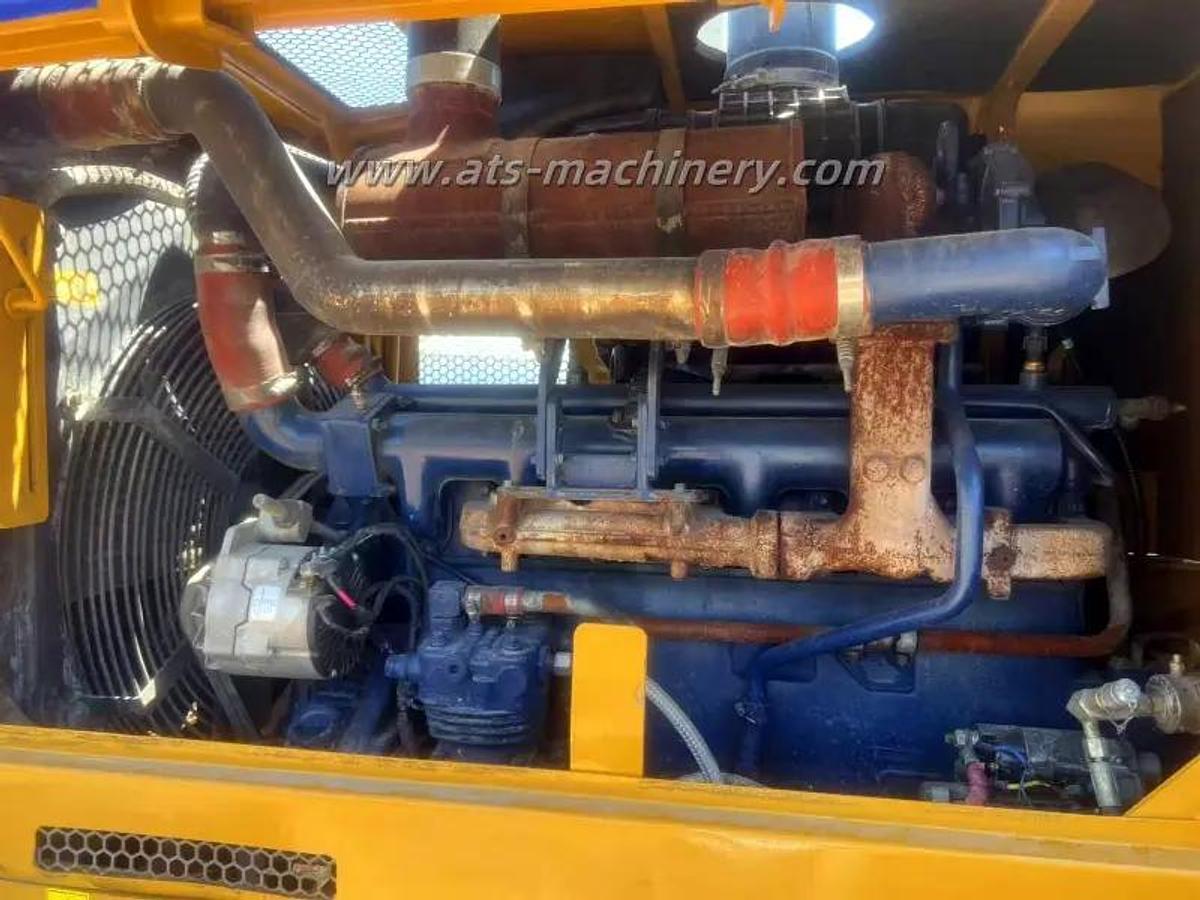

Engine

Engine model WP6G125E333

Rated power (kw/rpm) 92/2000

Descriptions

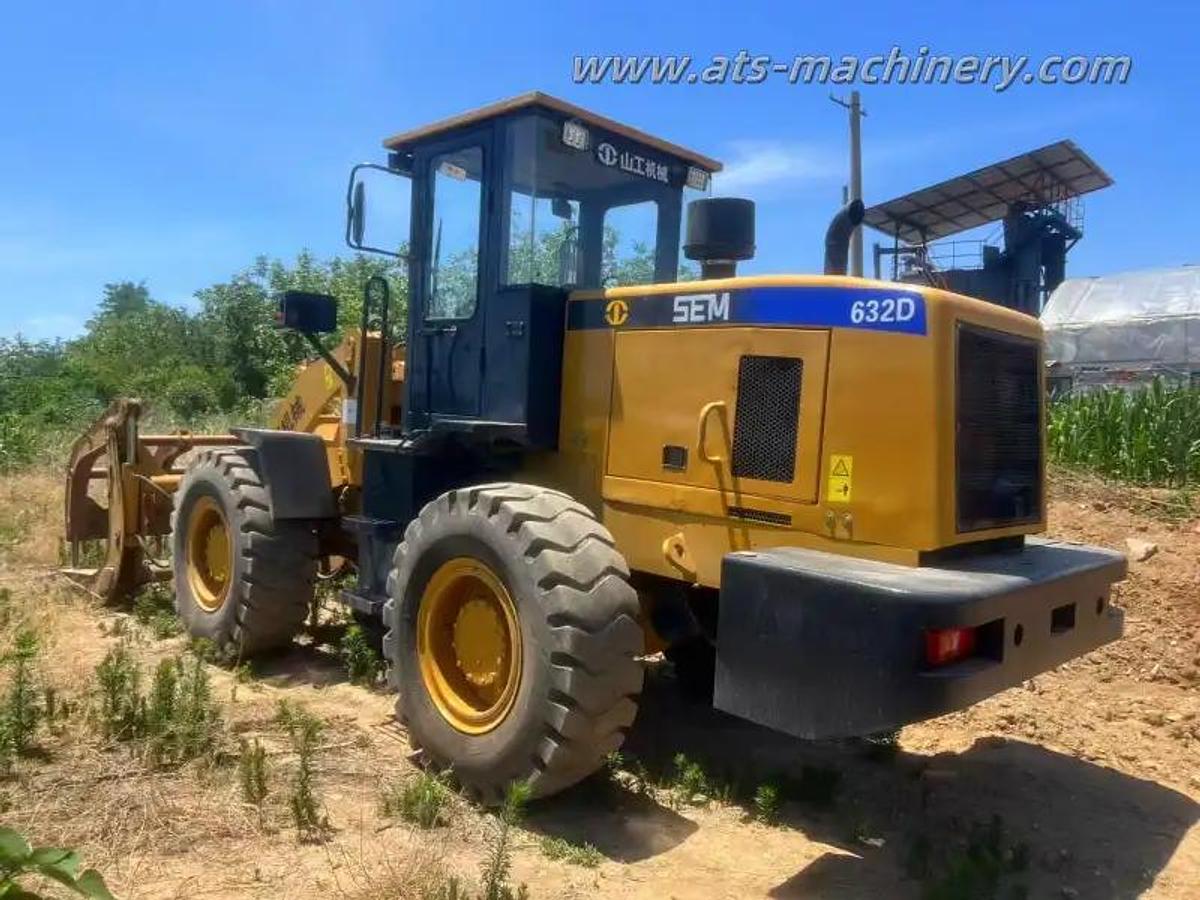

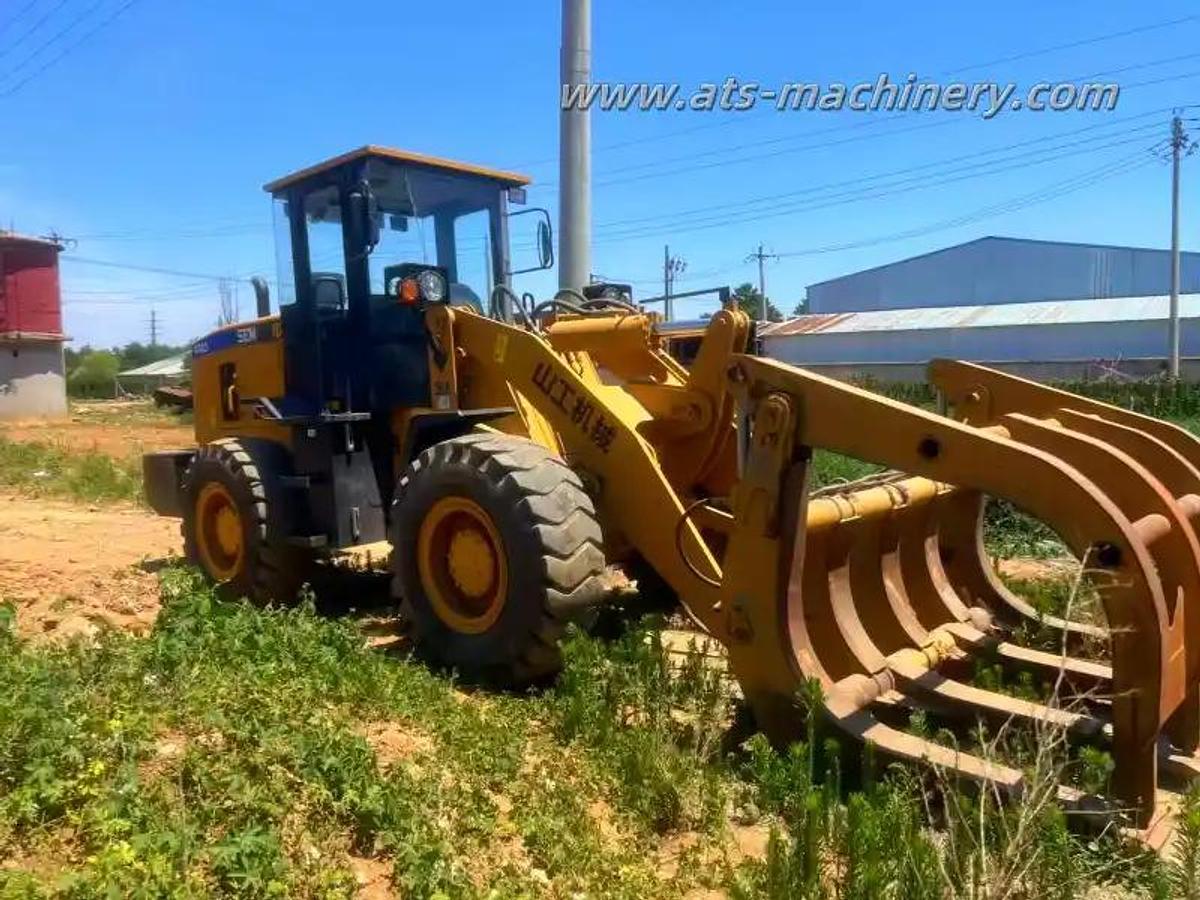

The SEM 632D wheel loader has a mature fixed-axis transmission system. The overall frame has been verified for a long time, and the structural life has been greatly extended. It has strong digging force and traction, higher operating efficiency, optimized low-speed engine, and high efficiency and energy saving.
