Specifications

Basic performance

Operating weight of the whole machine (kg) 17000-17250

Rated load capacity (kg) 5000

Bucket capacity (m³) 2.5-4.5

Maximum unloading height (mm) 3180-3700

Unloading distance (mm) 1090-1160

Excavation force (digging force) (kN) 180

Rated load capacity (ton) above 6 tons

Engine

Rated power (kW/rpm) 162

Steering system

Steering angle 38°

Working device action time

Triple sum (s) ≤ 11

Technical parameter

Maximum traction force (kN) ≥ 167

Maximum Climbing Capacity (°) 30

Overall dimensions

Overall length (mm) 8430

Overall width (mm) 3024

Overall height (mm) 3024

Descriptions

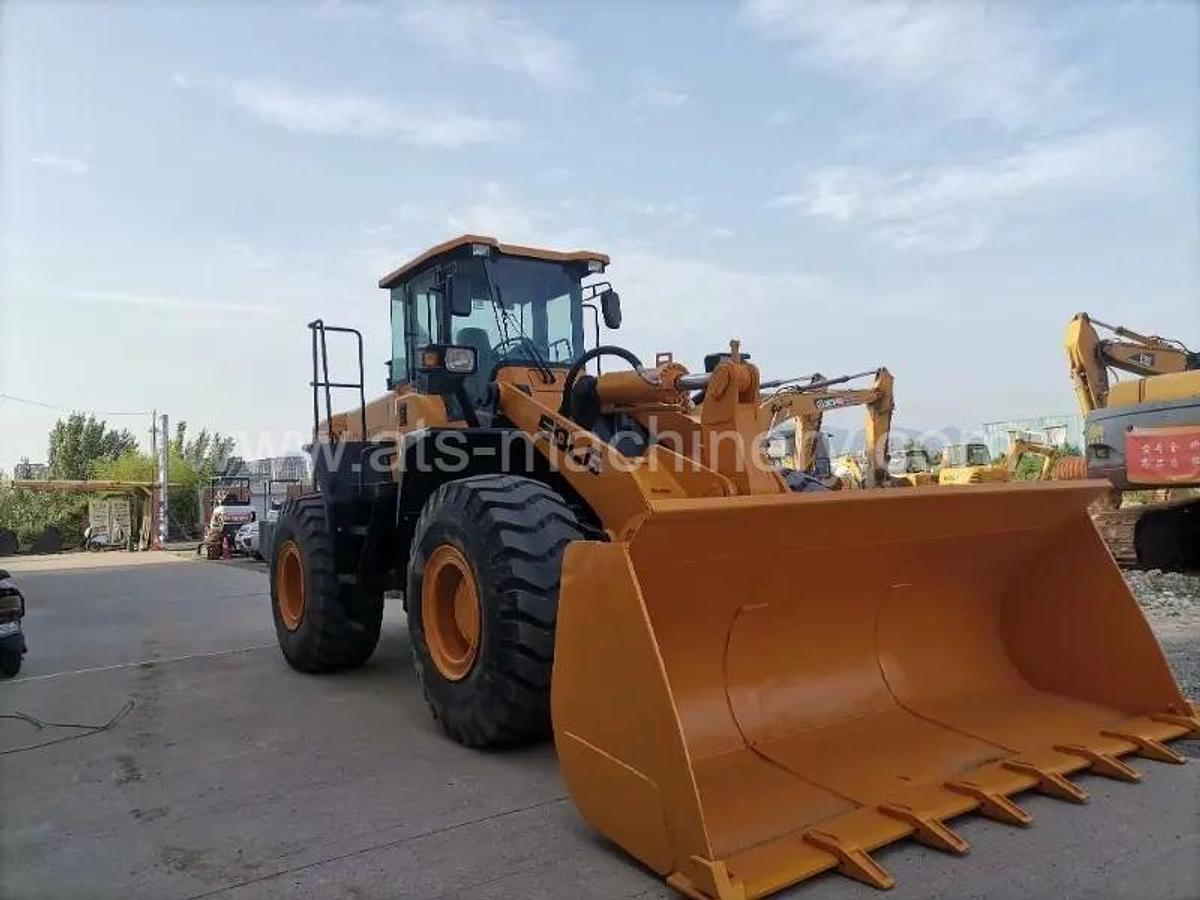

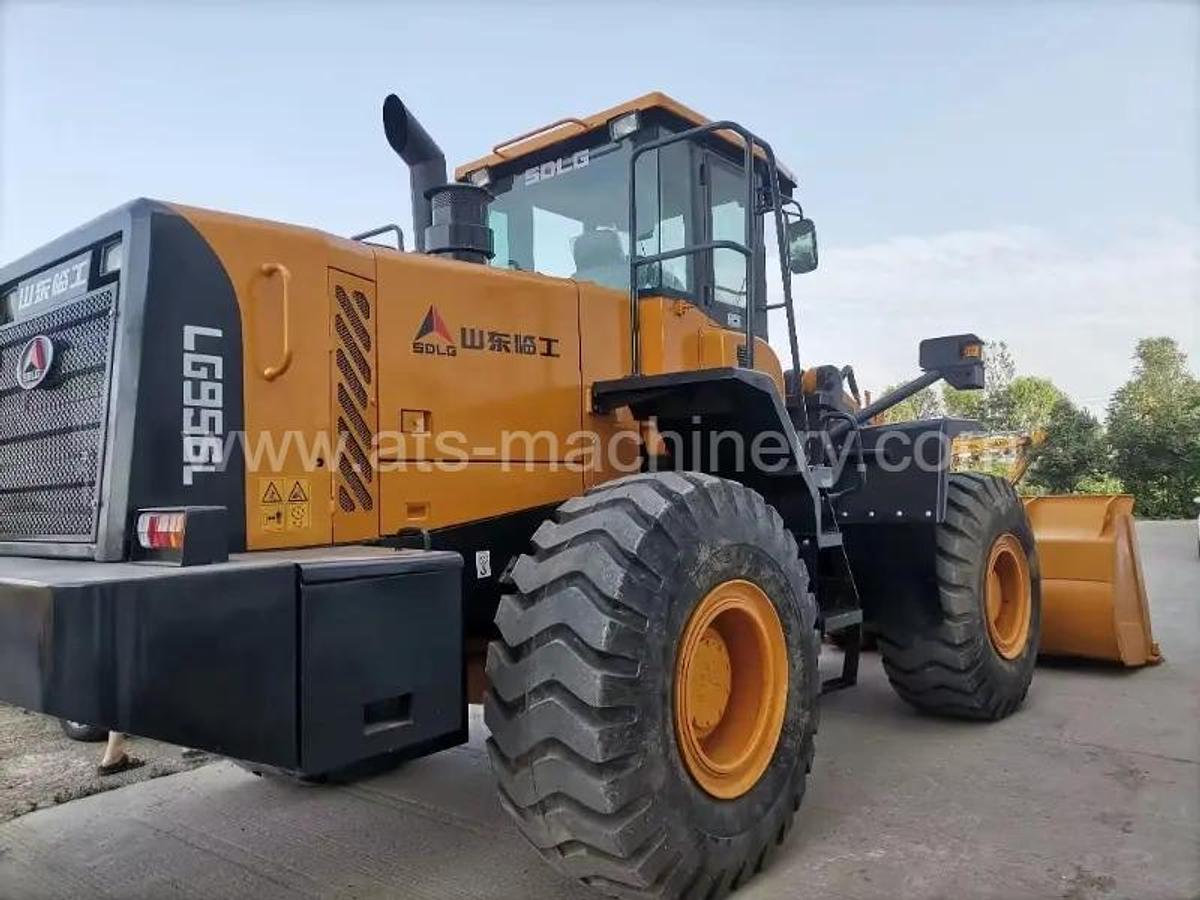

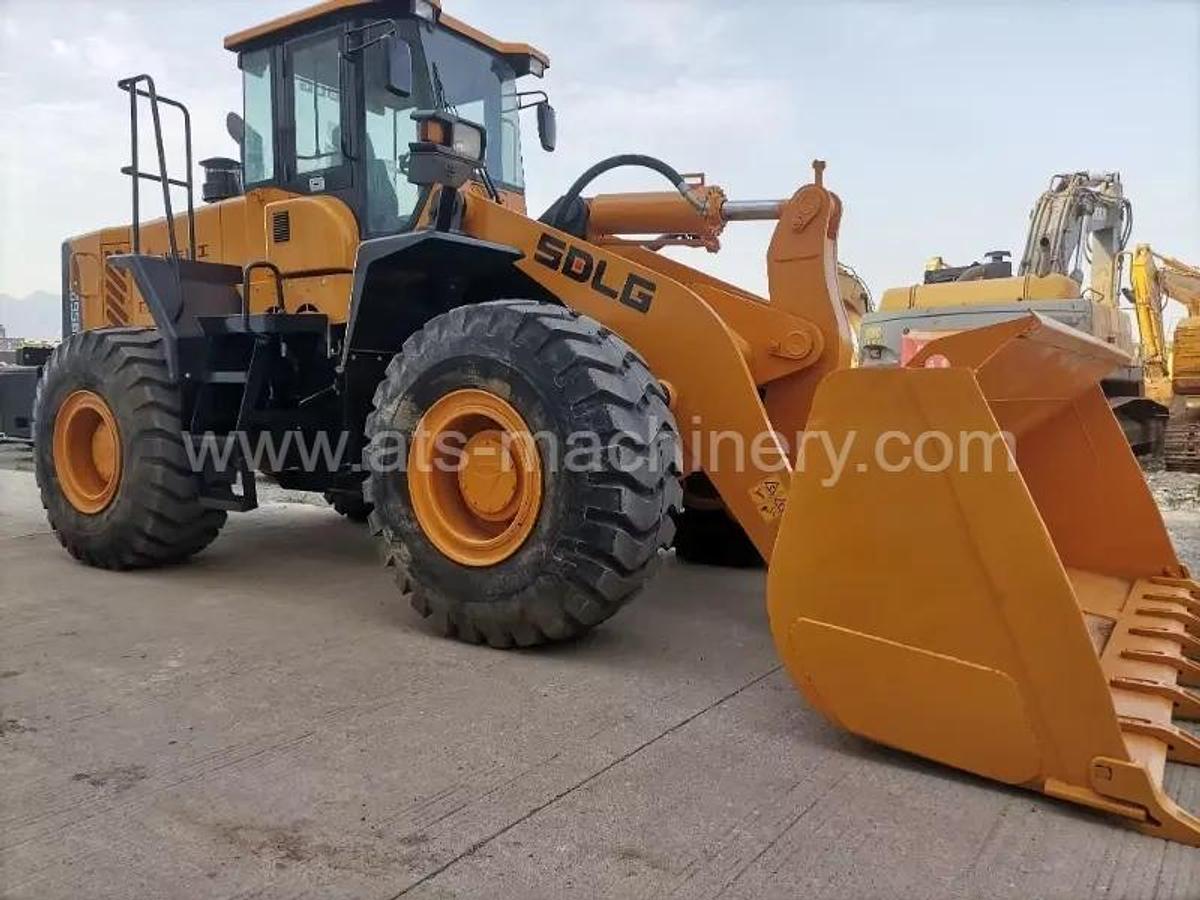

The LG956L loader has the advantages of strong power, easy operation, large load capacity, high efficiency and energy saving, good comfort, convenient maintenance and strong adaptability. It is suitable for various heavy-duty work tasks.
