Specifications

Working weight of the whole machine (kg) 23400

Net power (kW/rpm) 162

Bulldozer blade capacity (m³) 6.4 (straight tilt shovel)

Engine

Engine model Chongqing Cummins NT855-C280 (S10) Cummins

Power 162/1800

Displacement (L) 14

Number of cylinders - cylinder diameter x stroke (n-mm x mm) 139.7 x 152.4 (6 cylinders)

Other instructions: inline, water-cooled, four stroke, top valve direct injection, turbocharged diesel engine

Drive system

1st gear walking speed (km/h) 0-3.6

2nd gear walking speed (km/h) 0-6.5

3rd gear walking speed (km/h) 0-11.2

Hydraulic system

Hydraulic pump type gear oil pump

Maximum flow rate of the main pump of the working device (L/min) 262

Set pressure of relief valve for working device (MPa) 14

External dimensions

Overall length (mm) 6805

Overall width (mm) 2620

Overall height (mm) 3395

Minimum turning radius (m) 3.3

Bulldozer shovel device

Bulldozer width x height (mm) 3725 x 1315

Descriptions

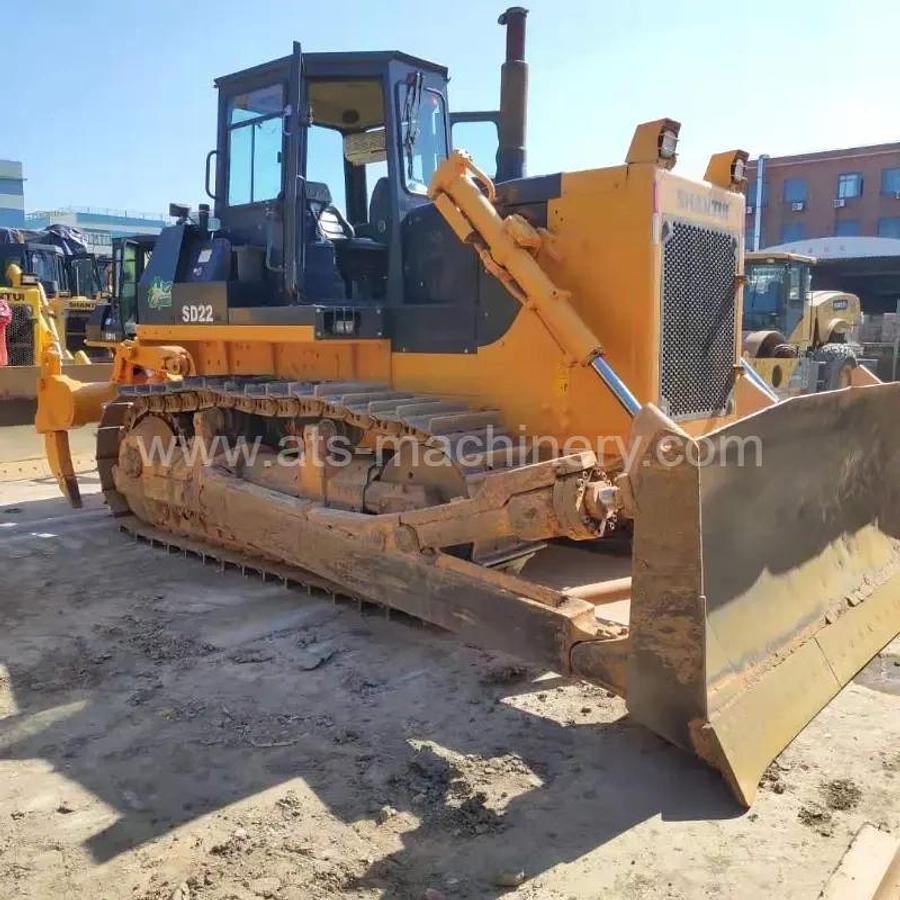

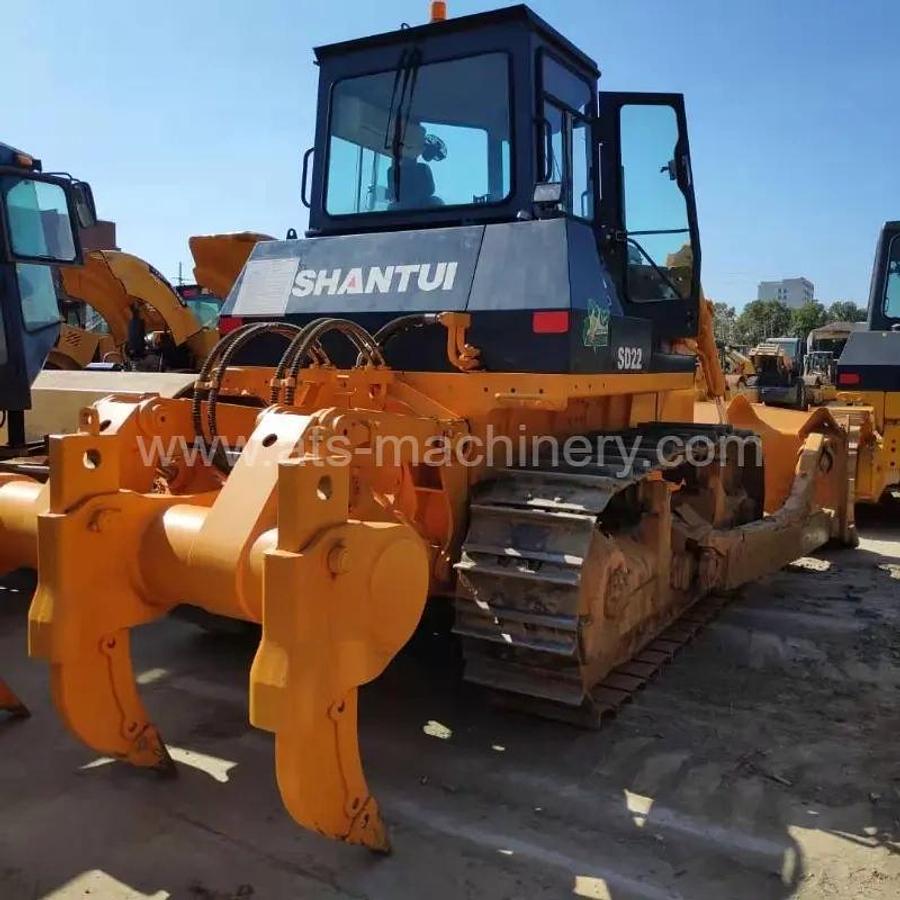

Shantui SD22 bulldozer has the advantages of powerful power, efficient operation, durability and reliability, multi-functional application, comfortable driving and convenient maintenance, and can meet the needs of various earthmoving projects.
