The operation video of this excavator is below the specifications. ↓

Specifications

Tonnage (tons) 8

Machine working weight (kg) 8350

Bucket capacity (m³) 0.31

Performance:

Slewing speed (rpm) 9.5

Traveling speed (km/h) 2.7/4.9

Gradability (%) 30

Bucket digging force (kN) 65.2

Power system:

Engine model Kubota

Rated power (kw/rpm) 47.8/2000

Displacement (L) 3.331

Cooling method Water cooling

Hydraulic system:

Main pump type Variable pump × 2 + gear pump × 1

Traveling hydraulic motor type

Slewing hydraulic motor type

Piston hydraulic motor

Oil capacity:

Fuel tank (L) 115

Main transport dimensions:

Total length for transport (mm) 6450

Total width for transport (mm) 2200

Total height for transport (mm) 2530

Operating range:

Maximum digging radius (mm) 7010

Maximum digging radius of parking surface (mm) 6850

Maximum digging depth (mm) 4290

Maximum digging height (mm) 7040

Maximum unloading height (mm) 4980

Maximum vertical digging depth (mm) 3490

Bulldozer blade width × height (mm) 2200 × 500

Bulldozer blade lifting or pushing depth (mm) 470/530‌

Descriptions

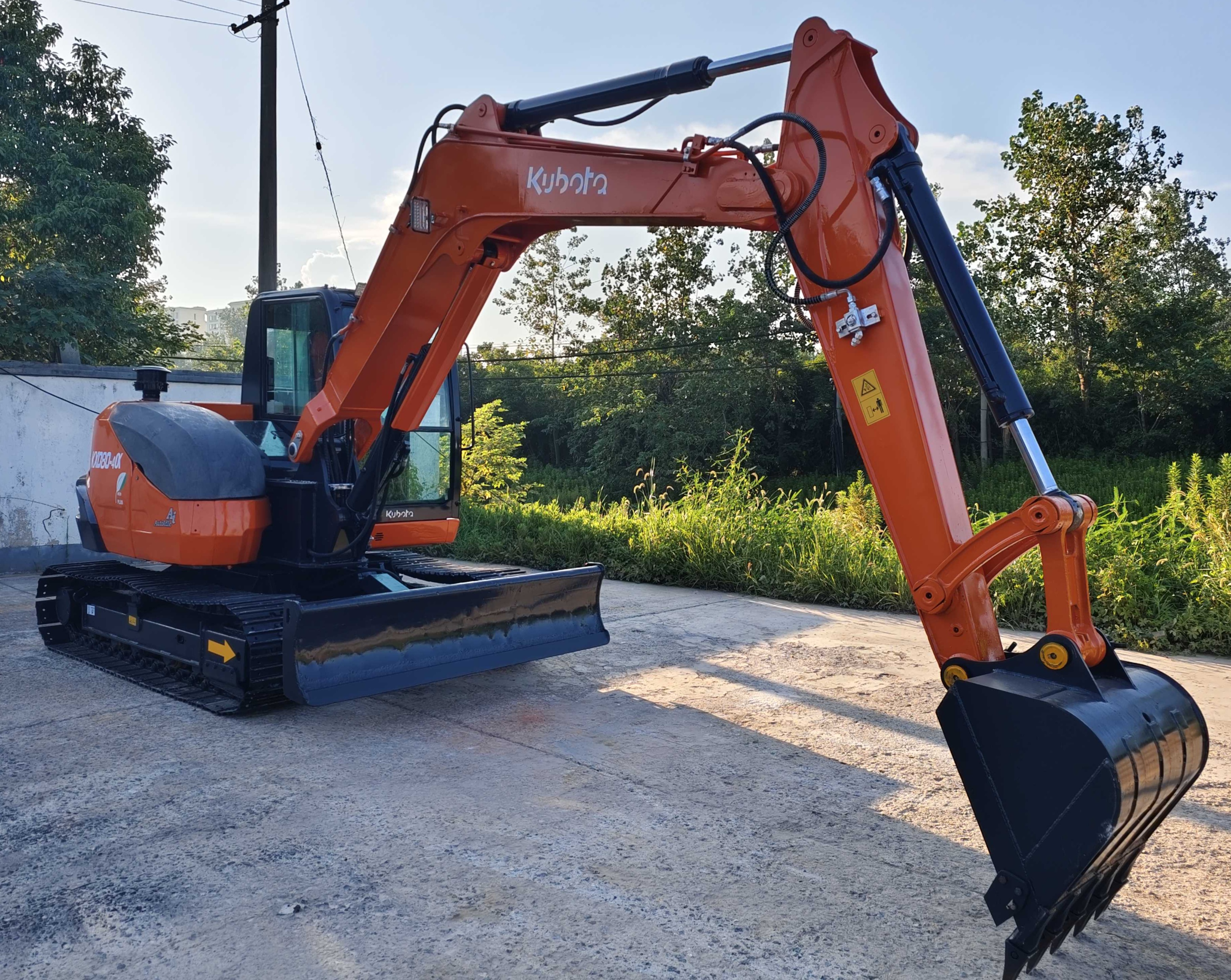

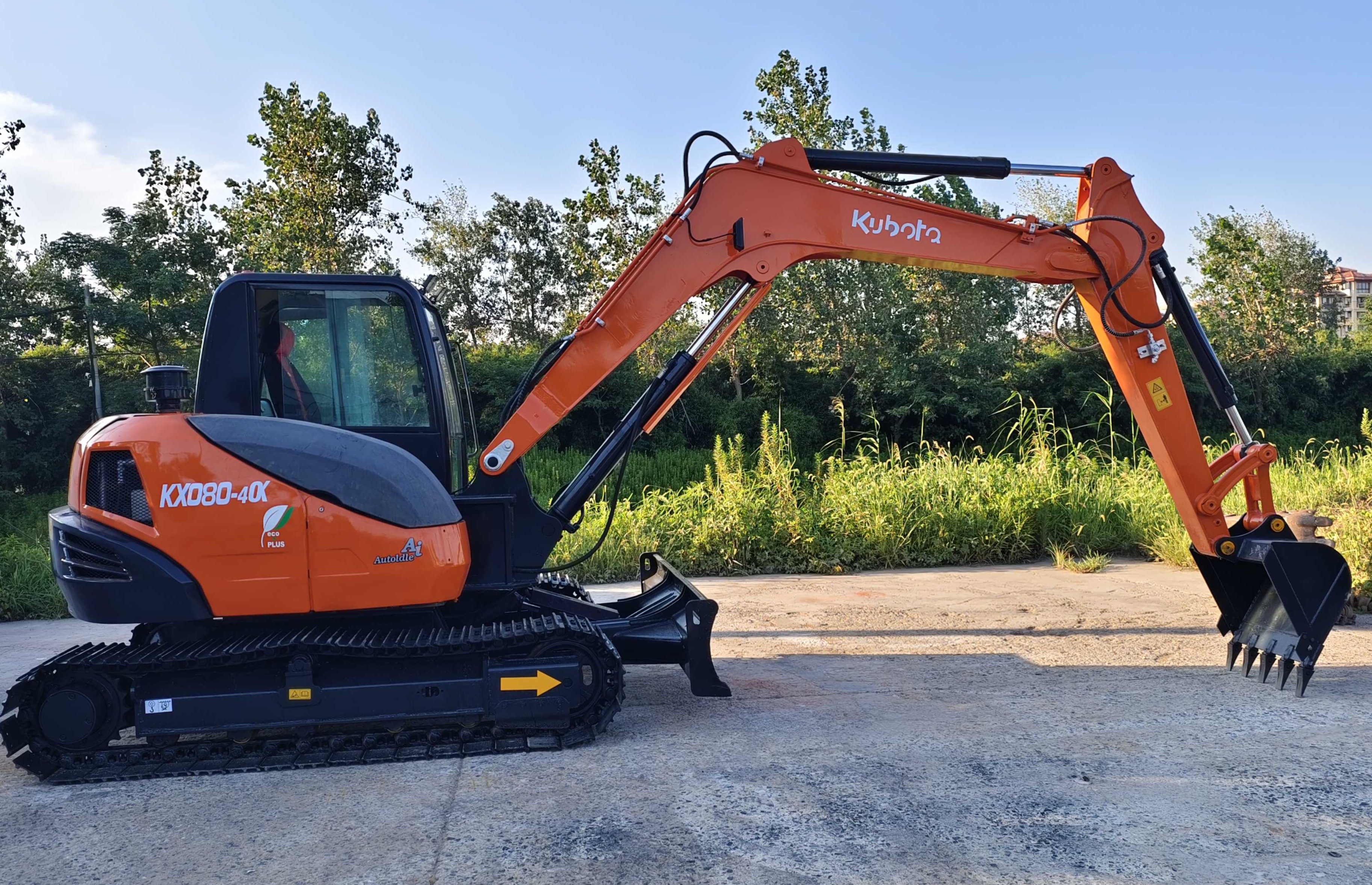

The Kubota KX080-4 excavator adopts advanced hydraulic system and control technology, has excellent working stability and flexibility, and can operate in a small construction site space. The excavator is equipped with a thumb clamp to achieve a variety of working functions.

VIDEO:

Used excavator KX080-4

https://youtube.com/shorts/V37xk2lkyHU?feature=share
