The operation video of this excavator is below the specifications. ↓

Specifications

Tonnage (tons) 5

Operating weight of the whole machine (kg) 5320

Bucket capacity (m³) 0.16

Performance:

Slewing speed (rpm) 10

Travel speed (km/h) 4.4/2.3

Ground pressure (Kpa) 28.8

Bucket digging force (KN) 33.8

Arm digging force (KN) 22.5

Power system:

Engine model Yanmar 4TNV88-PBVB

Rated power (kw/rpm) 28.8/2400

Cooling method Water cooling

Oil capacity:

Fuel tank (L) 64

Main transport dimensions:

Total length for transportation (mm) 5560

Total width for transportation (mm) 1990

Total height for transportation (mm) 2620

Operating range:

Maximum digging radius of parking surface (mm) 4160

Maximum digging depth (mm) 3980

Maximum digging height (mm) 6440

Maximum unloading height (mm) 4400

Descriptions

The Yanmar 55 excavator is equipped with a thumb clamp and boom swing side shift function, which allows flexible operation in narrow working spaces. It is suitable for various construction conditions and is easy to repair and maintain. It is an excavator with superior performance.

VIDEO:

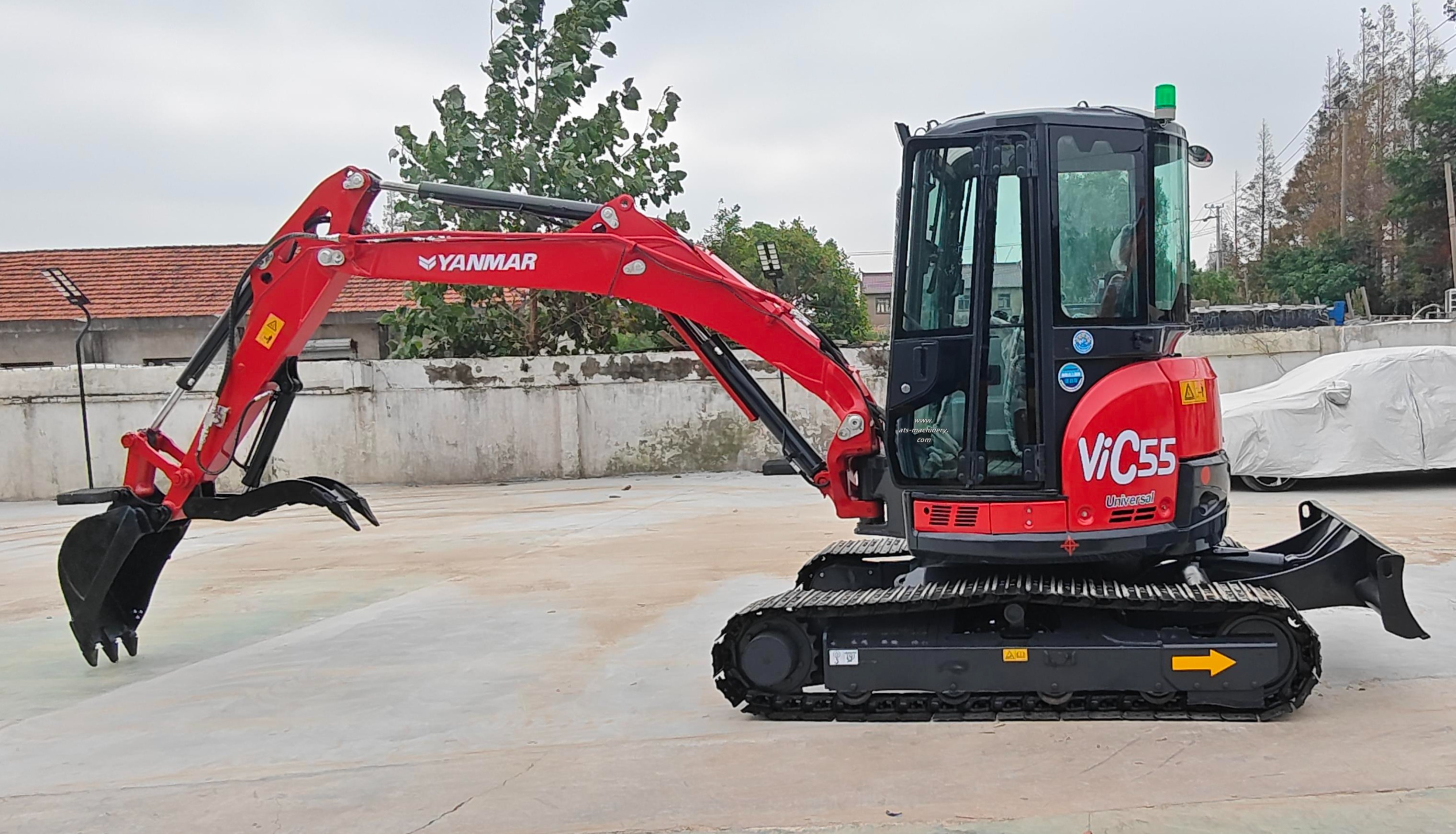

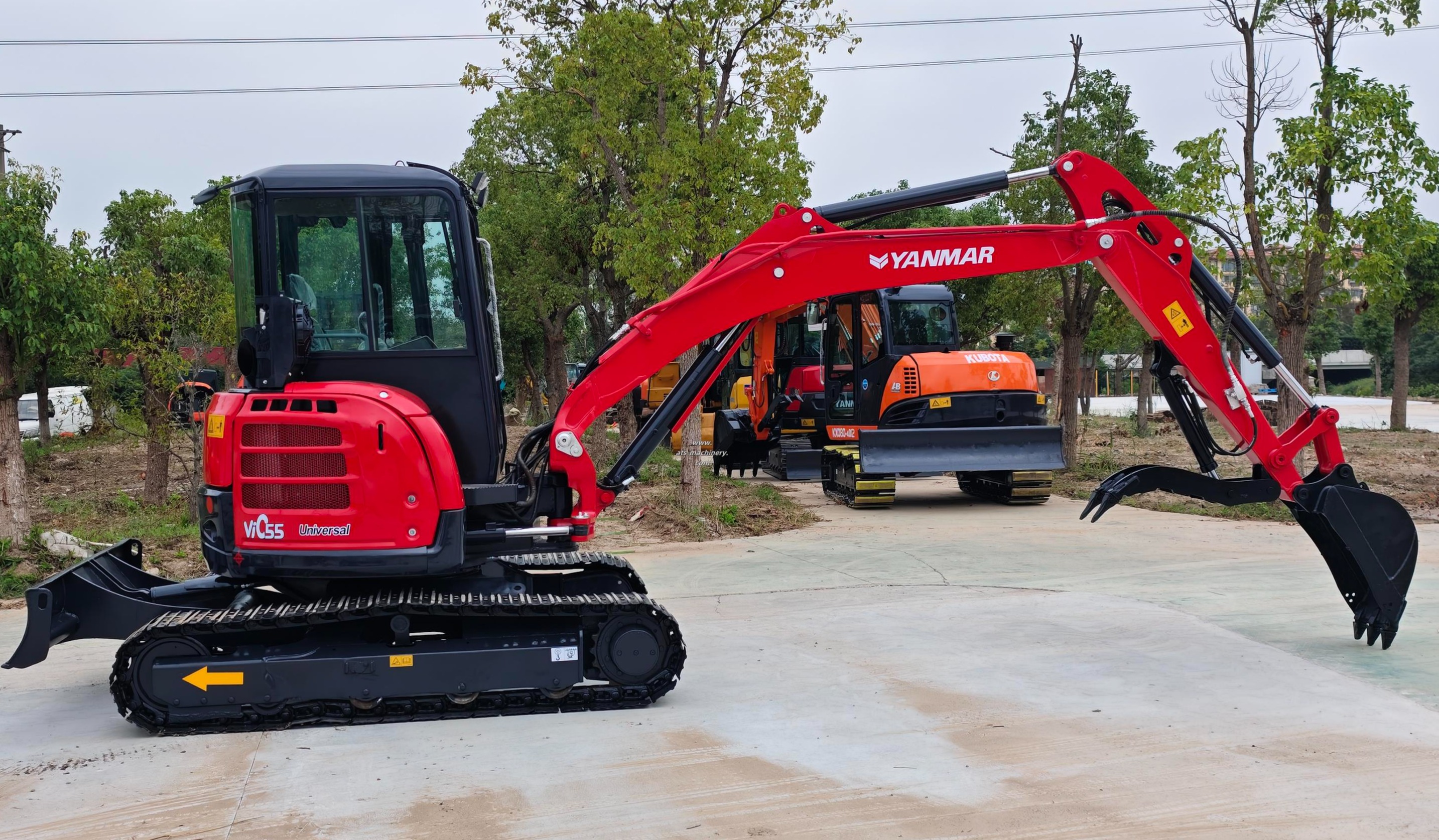

Used excavator YANMAR55
