The operation video of this excavator is below the specifications. ↓

Specifications

Tonnage (tons) 6

Machine operating weight (kg) 5540

Bucket capacity (m³) 0.24

Power system:

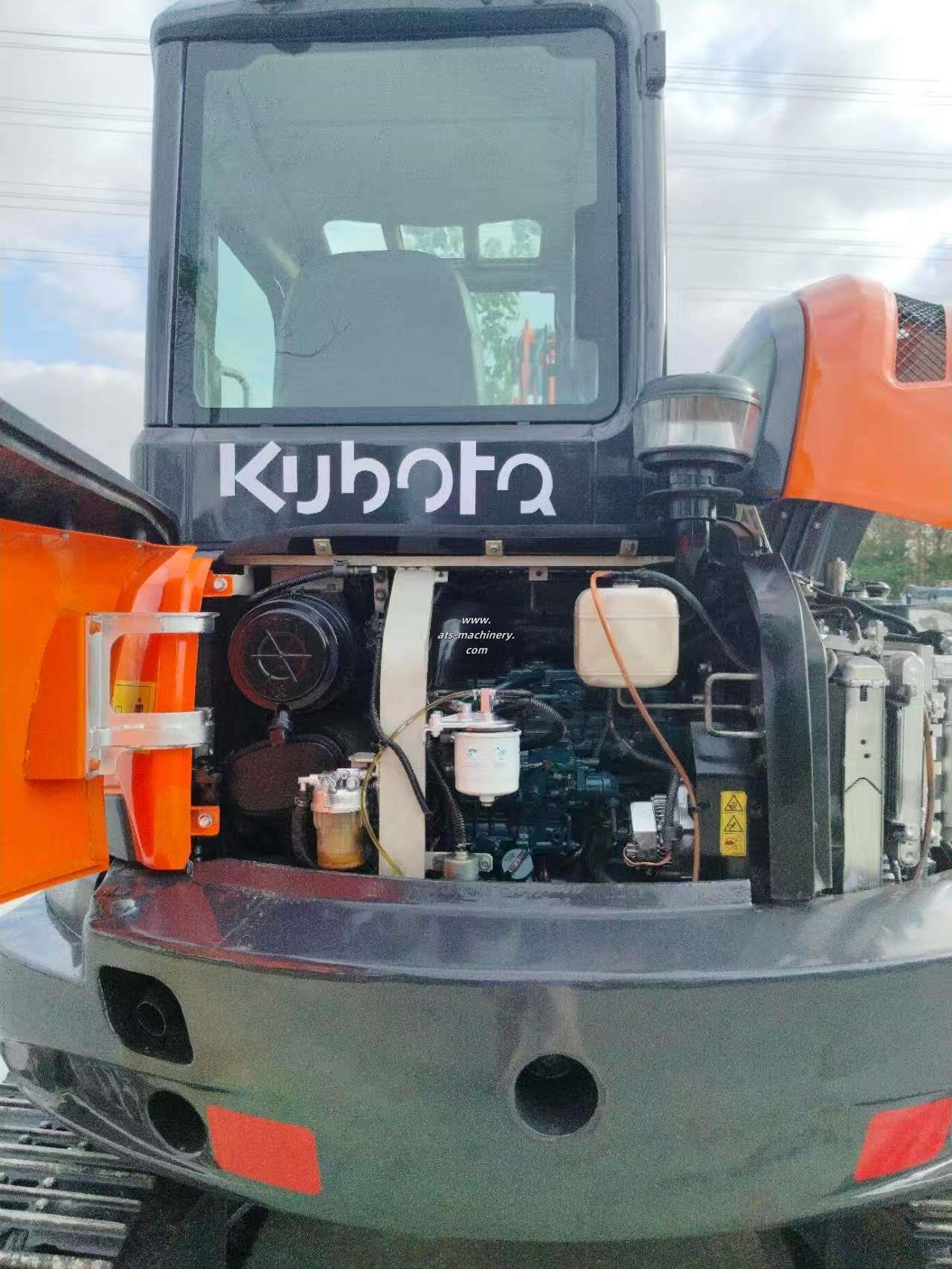

Engine model Kubota V2607-DI

Rated power (kw/rpm) 48.3/2200

Displacement (L) 2.615

Performance:

Slewing speed (rpm) 9.3

Gradability (%) 30°

Bucket digging force (kN) 40.1

Travel speed (km/h) 2.7/4.6

Hydraulic system:

Slewing hydraulic motor type Piston hydraulic motor

Travel hydraulic motor type Piston hydraulic motor, 2F

Main pump type Variable pump × 2 + gear pump × 2

Oil capacity:

Fuel tank (L) 75

Main transport dimensions:

Total length for transportation (mm) 5520

Total width for transportation (mm) 1960

Total height for transportation (mm) 2550

Operating range:

Maximum digging radius (mm) 6295

Maximum digging depth (mm) 3920

Maximum digging height (mm) 5860

Maximum unloading height (mm) 4125

Maximum vertical digging depth (mm) 2890

Bulldozer lifting or pushing depth (mm) 400/410

Bulldozer blade width × height (mm) 1960*410

Descriptions

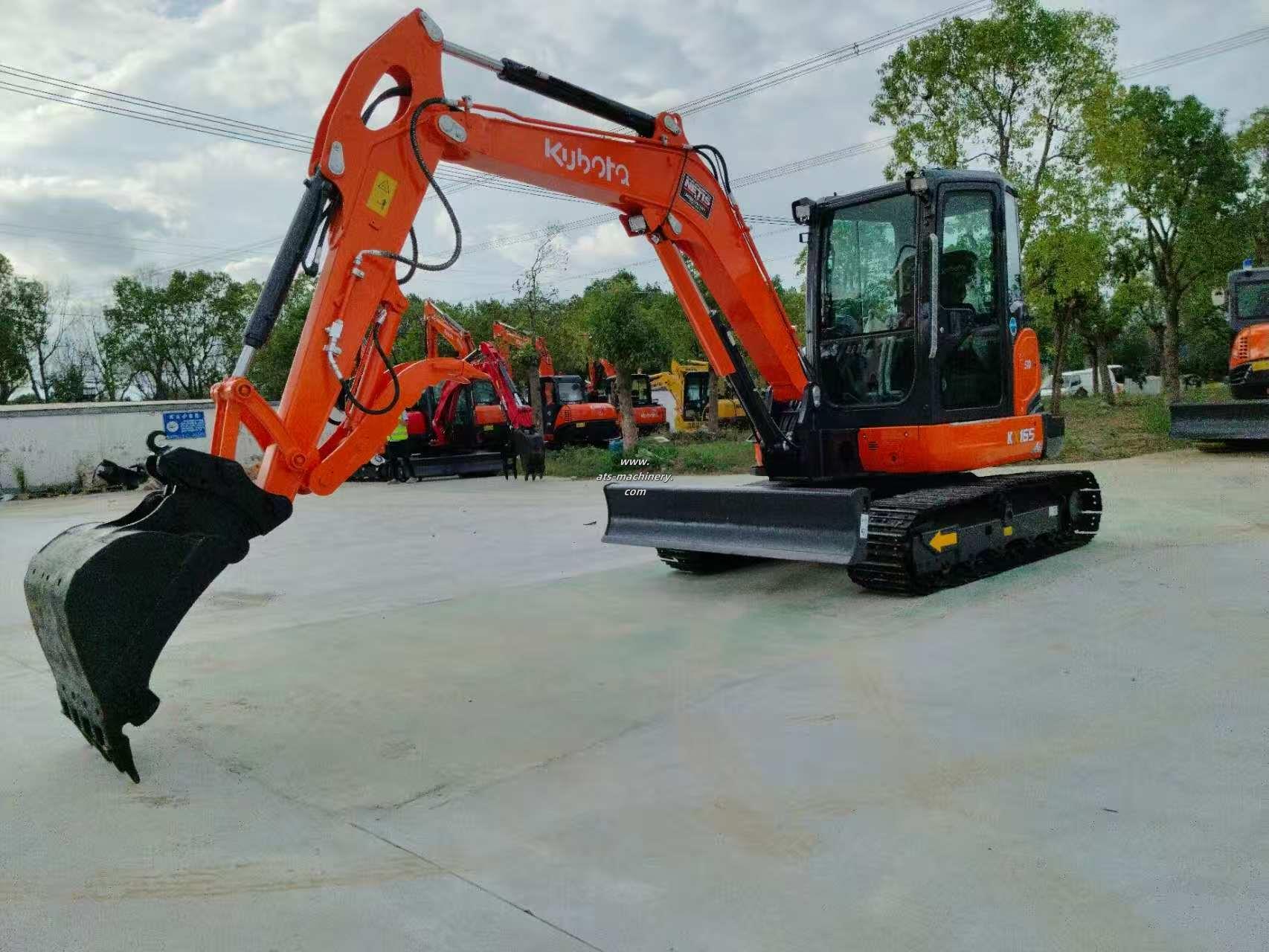

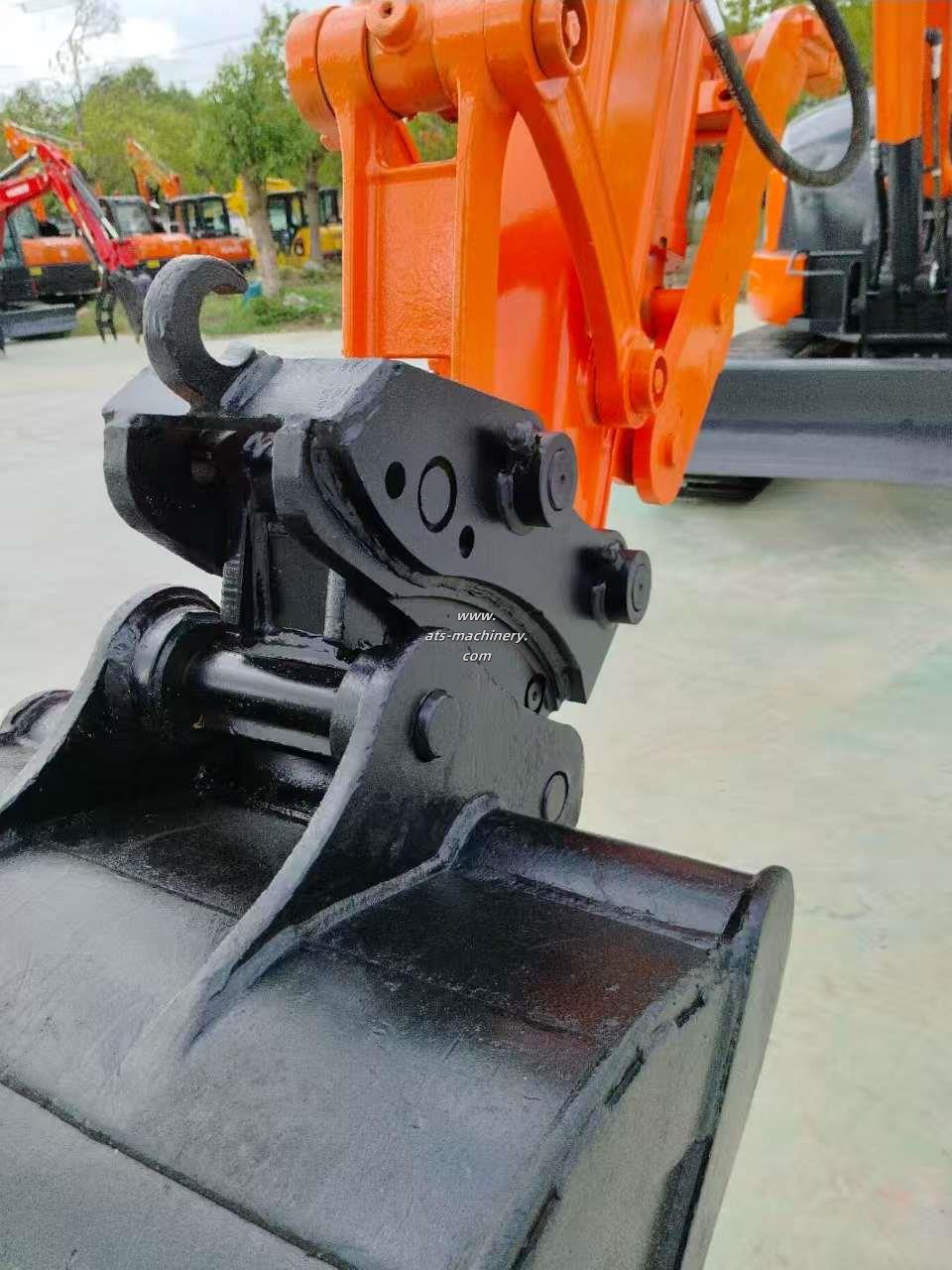

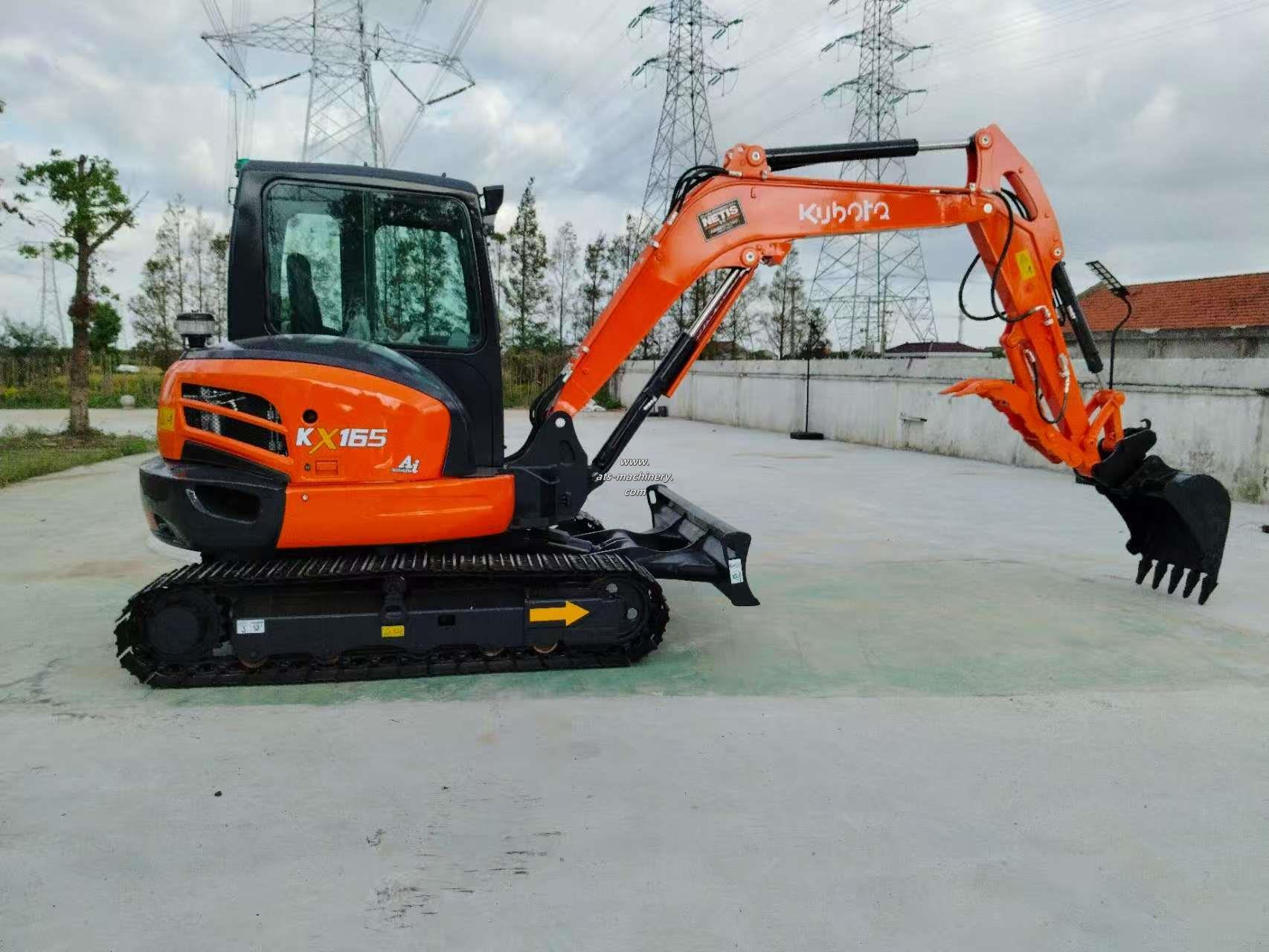

The Used kx165 kubota excavator is manufactured by the japan company, with the aim of enabling customers and operators to complete more tasks, be flexible, and confidently respond to any working condition. The excavator has thump clamp and hydraulic quick attach makes it easier and more flexible to operate in narrow spaces.

VIDEO:

Used excavator KUBOTA KX165
