The operation video of this excavator is below the specifications. ↓

Specifications

Tonnage (tons) 2

Machine working weight (kg) 2380

Bucket capacity (m³) 0.054

Performance:

Slewing speed (rpm) 9.6

Traveling speed (km/h) 2.2/4.2

Bucket digging force (kN) 18.4

Power system:

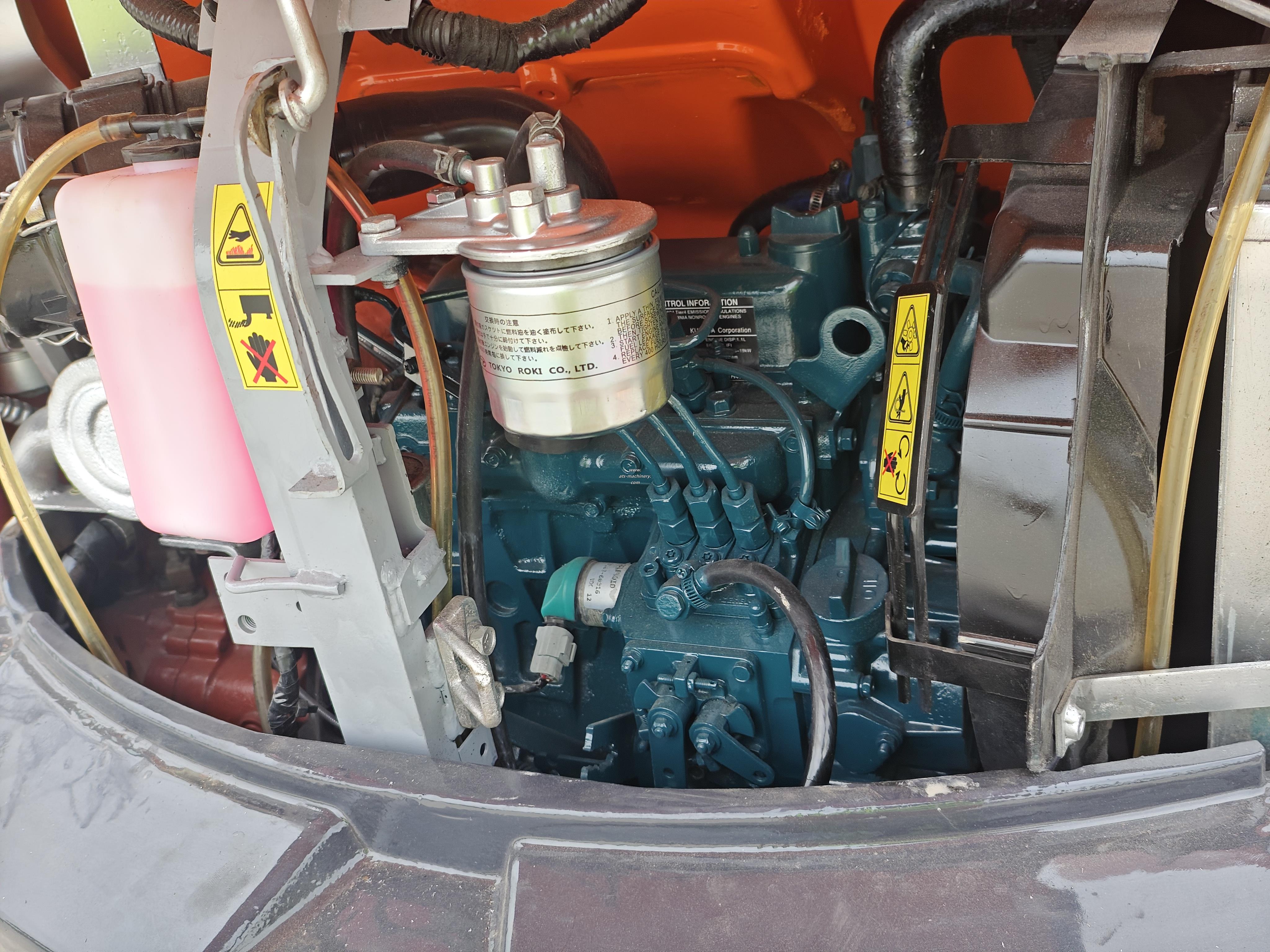

Engine model D1105-E4

Rated power (kw/rpm) 19/2200

Displacement (L) 1.123

Hydraulic system:

Main pump type Variable pump 2+gear pump 2

Slewing hydraulic motor type

Piston hydraulic motor

Traveling hydraulic Motor type 2-speed plunger hydraulic motor

Oil capacity:

Fuel tank (L) 28

Operating range:

Maximum digging radius (mm) 4140

Maximum digging depth (mm) 2320

Maximum digging height (mm) 3880

Maximum unloading height (mm) 2550

Maximum vertical digging depth (mm) 1900

Bulldozer blade width × height (mm) 1300*292

Bulldozer blade lifting or pushing depth (mm) 340/270

Descriptions

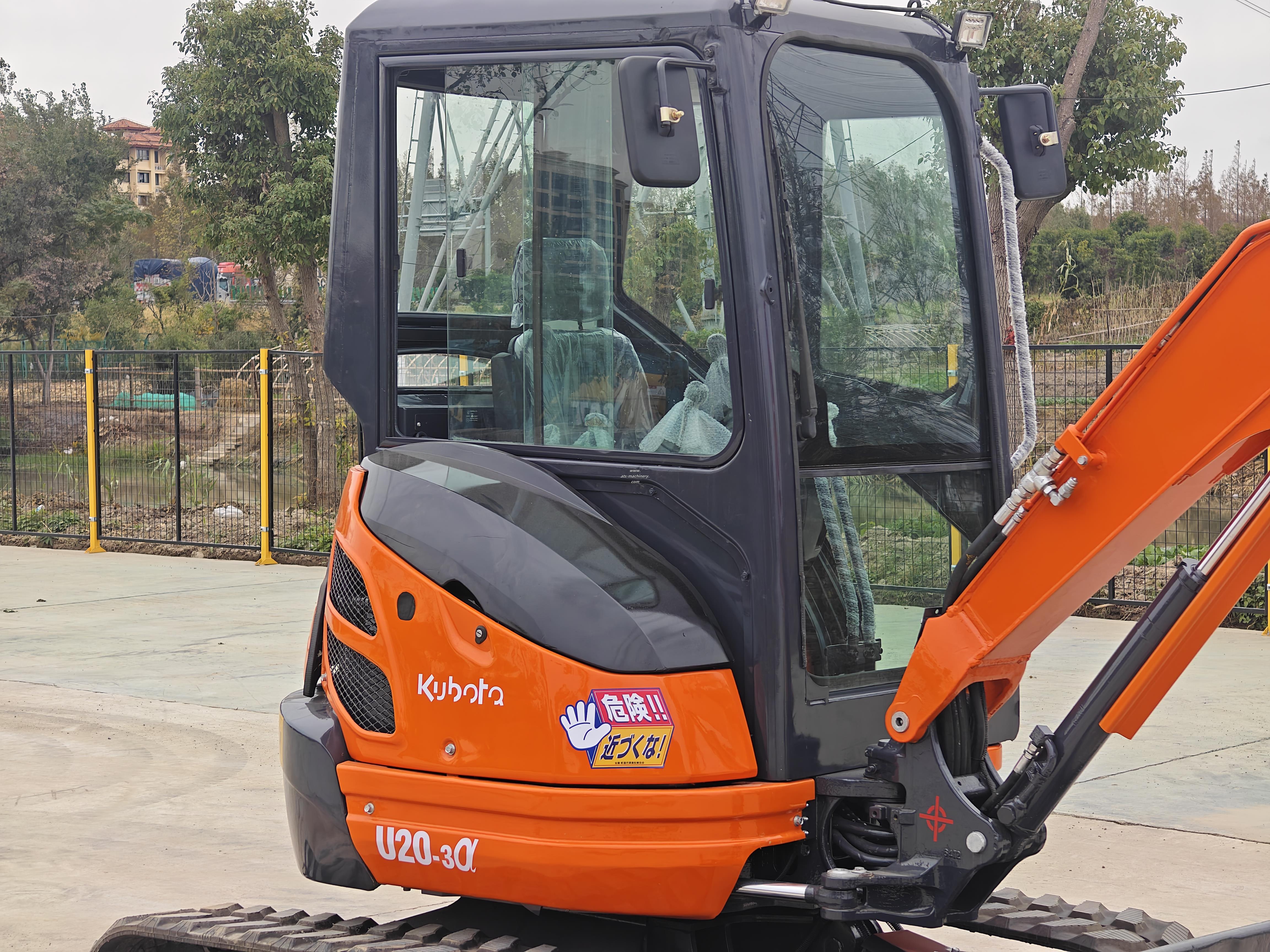

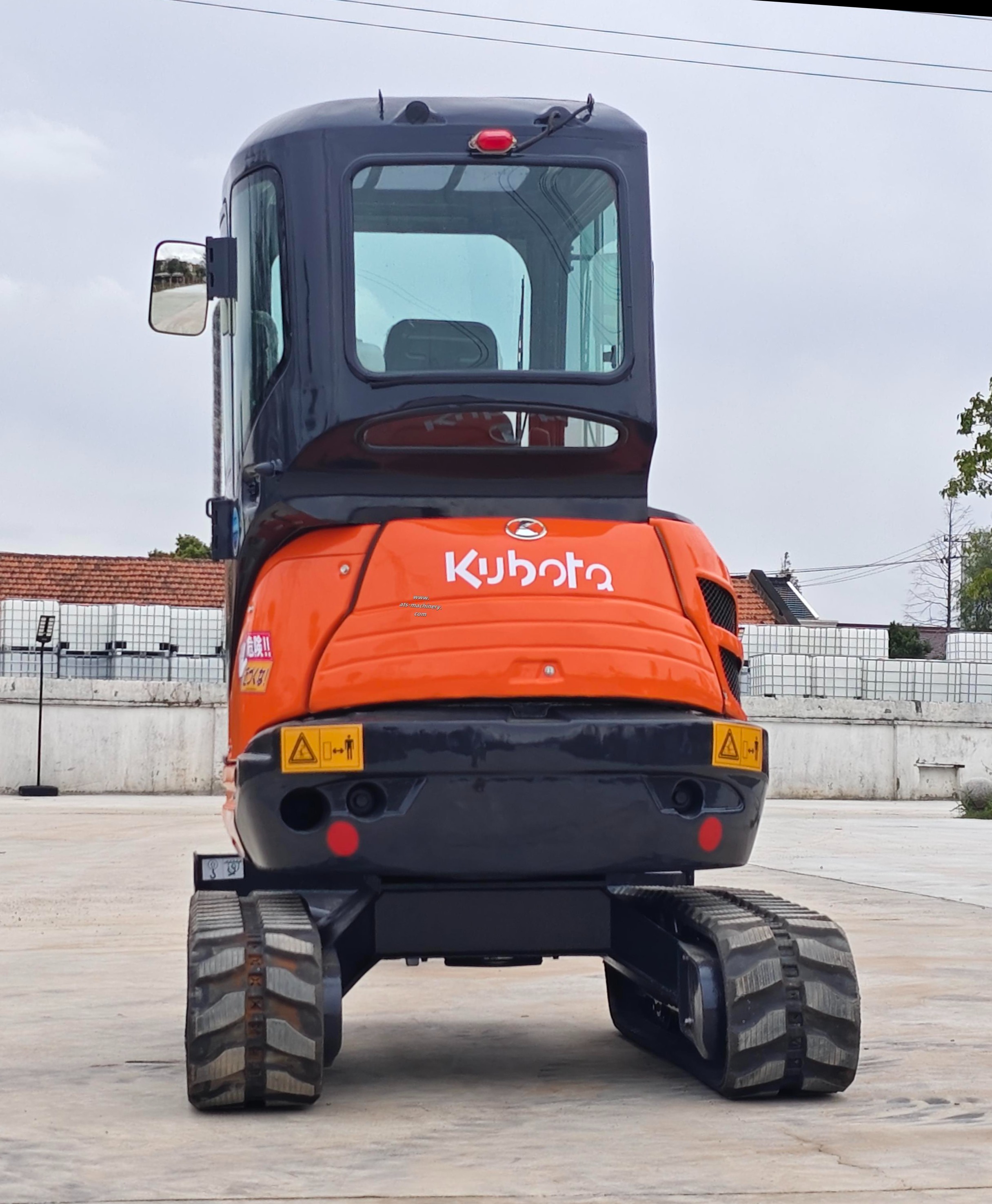

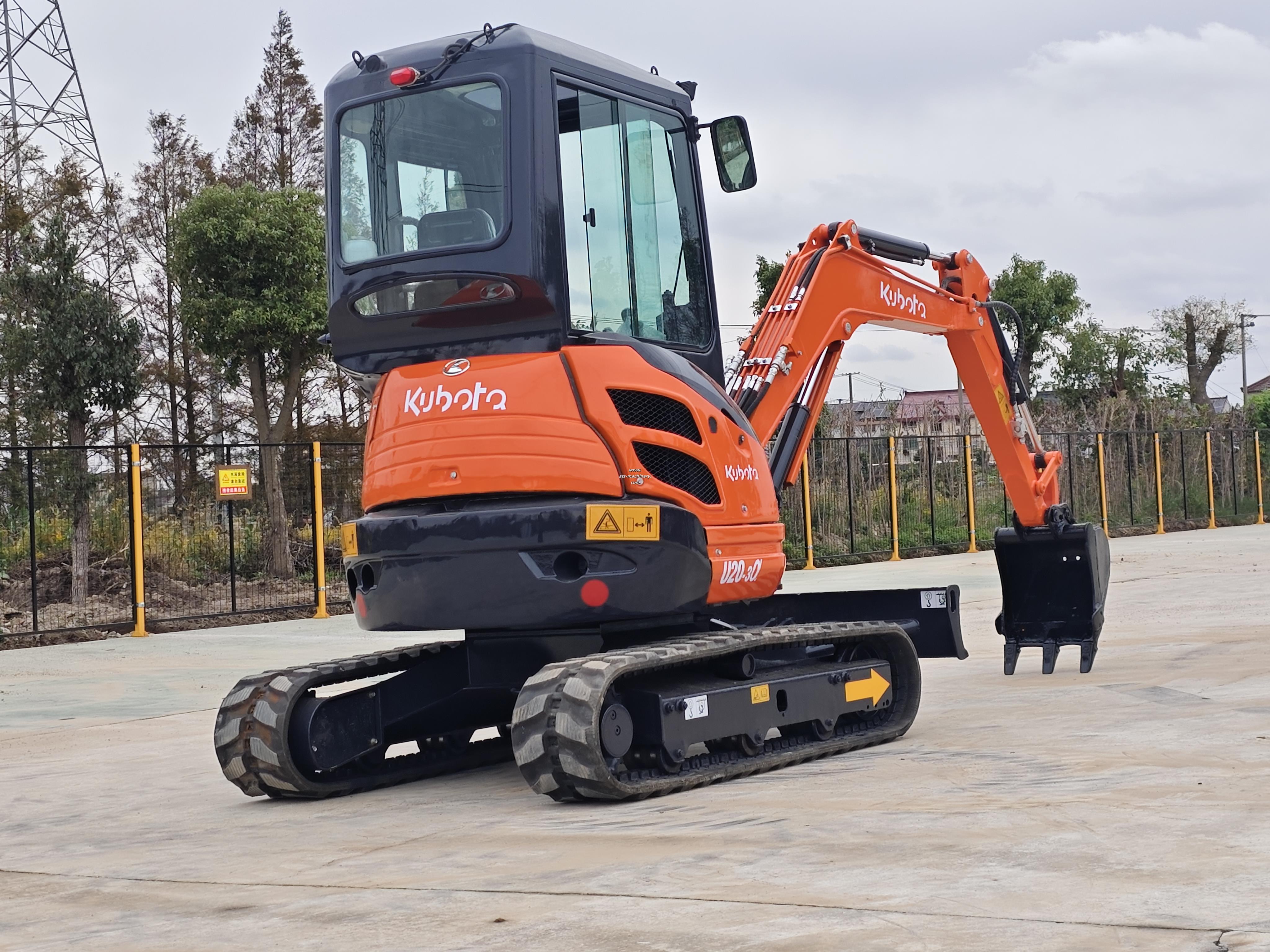

The Kubota U20-3α is perfectly equipped to take on tough jobs even in places where space is limited. Standard steel tracks or rubber tracks, enhancing driving comfort and work efficiency. Featuring tailless boom swing and a host of advanced features as standard to deliver efficient performance and low operating costs.

VIDEO:

Used excavator KUBOTA U20-3a
