The operation video of this excavator is below the specifications. ↓

Specifications

Tonnage (tons) 3

Machine operating weight (kg) 3125

Bucket capacity (m³) 0.1

Performance:

Swing speed (rpm) 10.5

Travel speed (km/h) 4.5/2.7

Ground pressure (Kpa) 29.8

Bucket digging force (kN) 29.9

Arm digging force (kN) 18.1

Power System:

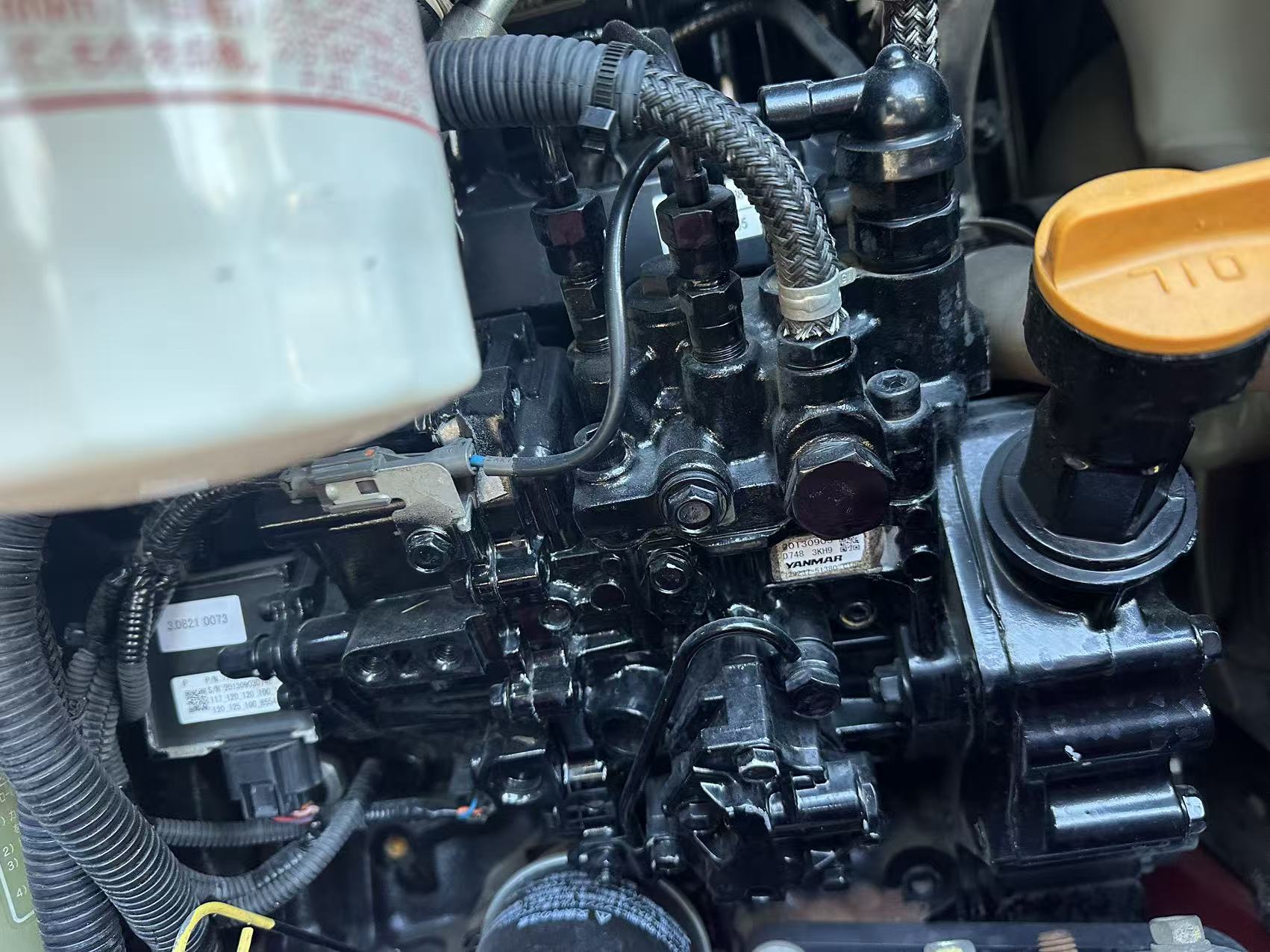

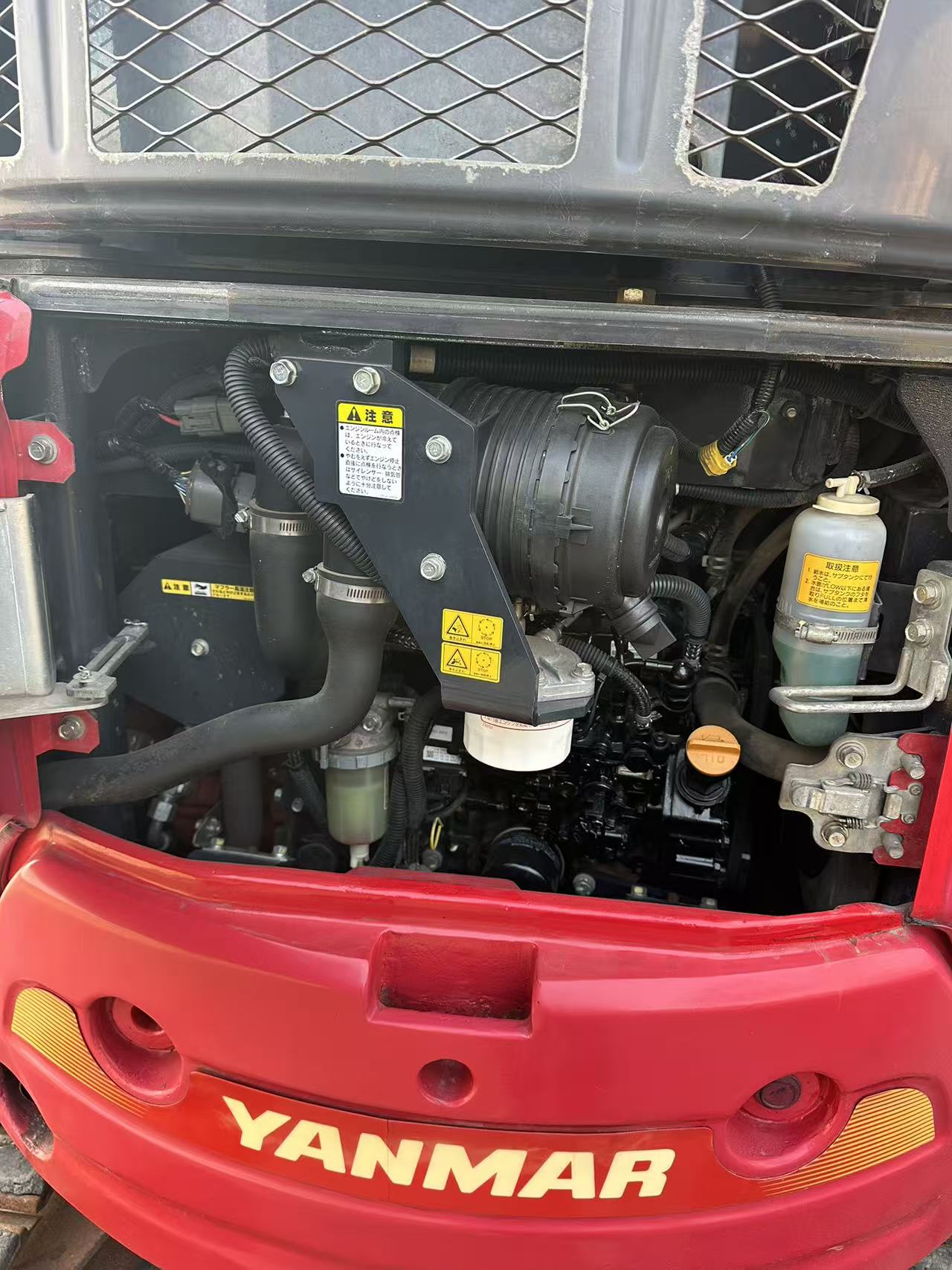

Engine model YANMAR 3TNV88-ZSBV

Rated power (kW/rpm) 20.4/2200

Number of cylinders 4

Cooling method Water-cooled

Operation type Inline three-cylinder water-cooled direct injection diesel engine

Fuel Capacities:

Fuel tank (L) 41

Main Dimensions:

Transport length (mm) 4470

Transport width (mm) 1550

Transport height (mm) 2500

Cab overall height (mm) 2460

Total track length (mm) 2160

Track plate width (mm) 300

Total track width (mm) 1550

Track gauge (mm) 1250

Minimum ground clearance (mm) 320

Front working device minimum turning radius (mm) 2050

Working Range:

Maximum digging radius (mm) 4870

Maximum digging radius at stop surface (mm) 4730

Maximum digging depth (mm) 2820

Maximum digging height (mm) 4550

Maximum unloading height (mm) 3160

Maximum vertical digging depth (mm) 2290

Boom swing angle (left/right °) Left 65 / Right 43

Dozer blade width × height (mm) 1550 × 330

Descriptions

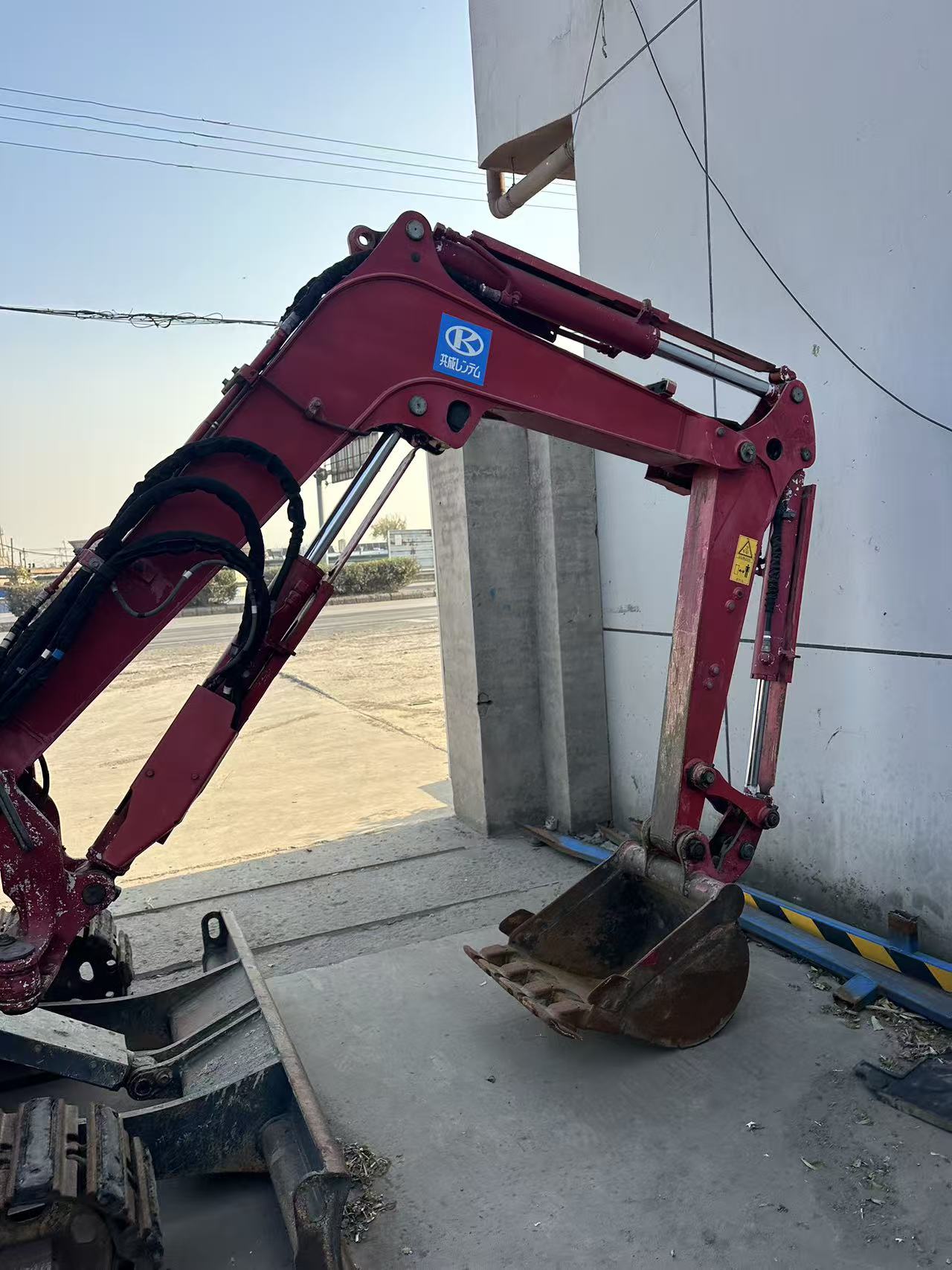

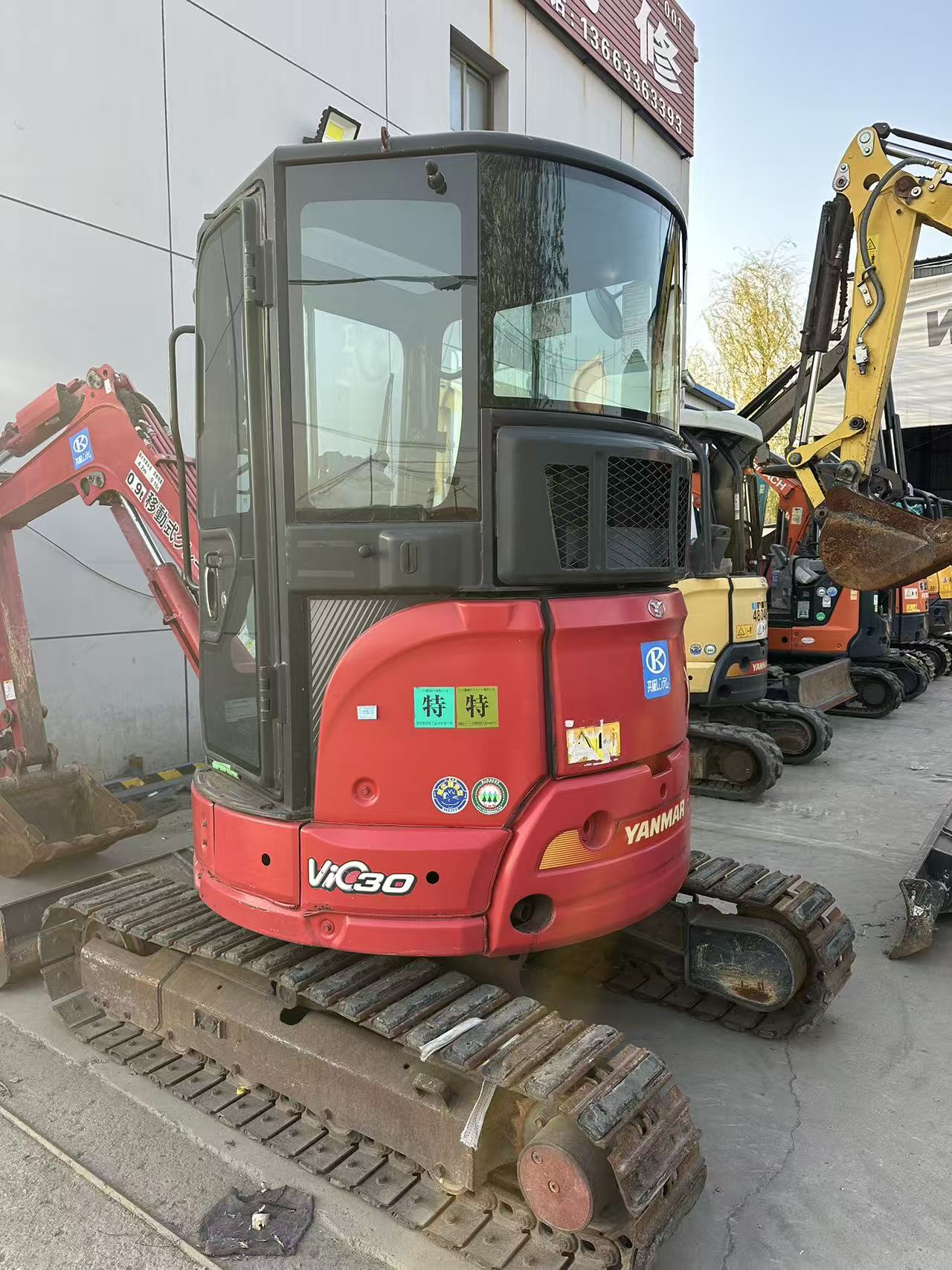

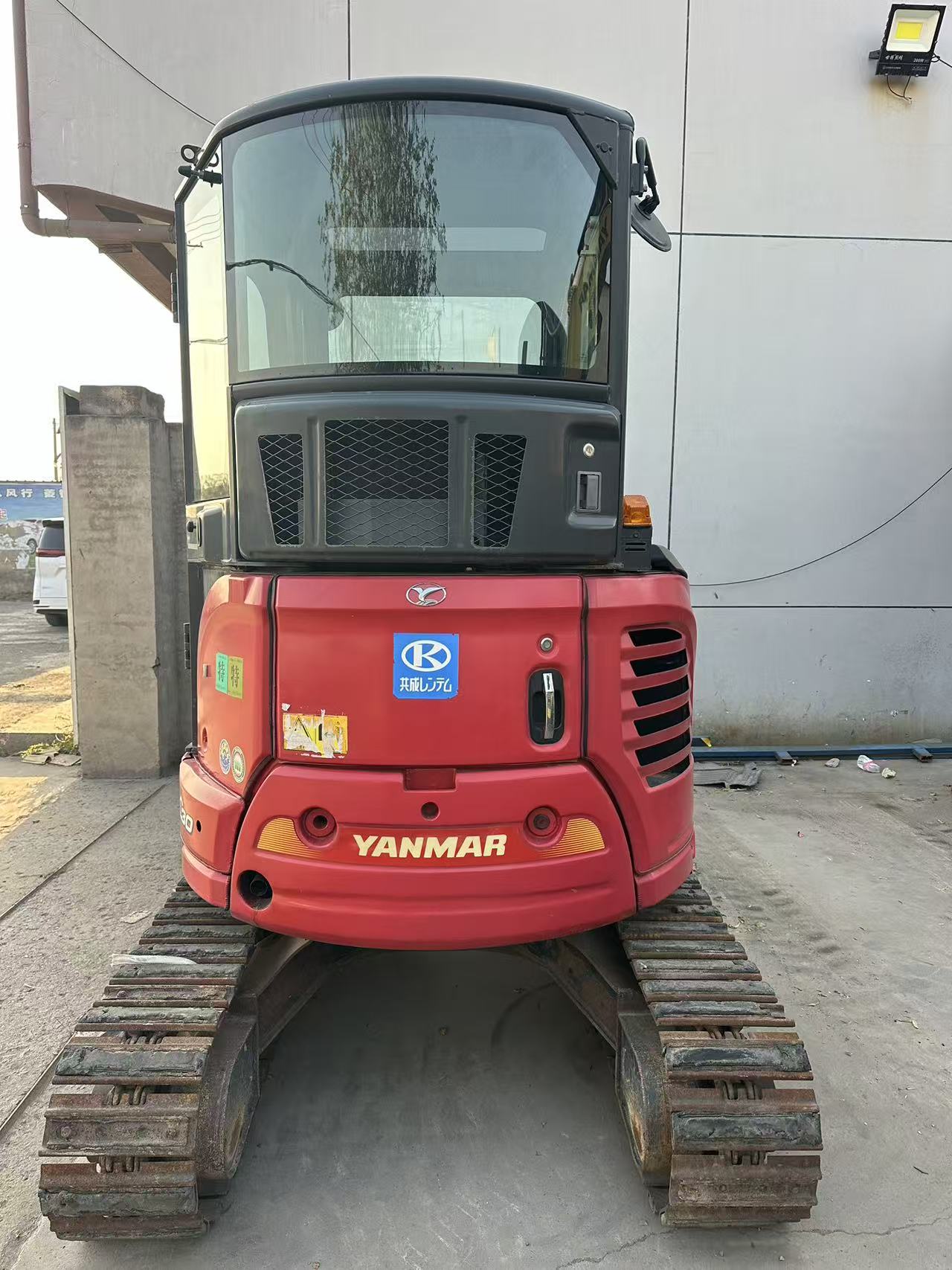

The Yanmar Vio30 is a compact excavator featuring a tailless design, which allows for safe and efficient operation in confined spaces without the risk of tail swing. Its key function includes a boom swing articulation, enabling the boom to move side-to-side for precise digging and enhanced flexibility around obstacles. This combination makes it an ideal machine for urban construction and landscaping projects where space is limited.

VIDEO:

YELLOE COLOR: Used excavator YANMAR 30 tailless

RED COLOR: https://youtube.com/shorts/9jLJKPzPHHU?feature=share
