The operation video of this excavator is below the specifications. ↓

Specifications

Tonnage (tons) 3

Working weight of the whole machine (kg) 3595

Bucket capacity (m³) 0.11

Performance:

Ground Pressure (Kpa) 36.3

Swing Speed (rpm) 9

Travel Speed (km/h) 2.8/4.6

Gradeability (%) 58/30°

Bucket Digging Force (kN) 29.9

Power System:

Engine Model Komatsu 3D88E-6

Rated Power (kw/rpm) 21.7/2400

Displacement (L) 1.642

Cooling Method Water-cooled

Engine Type 4-stroke, water-cooled in-line, direct injection engine; Stroke: 102.4mm, Bore: 87mm

Hydraulic System:

Travel Hydraulic Motor Type Variable piston type × 2

Swing Hydraulic Motor Type Fixed piston type × 1

Hydraulic Breaker Pipeline Not standard configuration

Fluid Capacities:

Fuel Tank (L) 4450

Hydraulic Oil Tank (L) 45

Engine Oil Capacity (L) 7.7

Coolant (L) 3.3

Dimensions:

Overall Transport Length (mm) 594850

Overall Transport Width (mm) 1740

Overall Transport Height (mm) 2530

Cab Height (mm) 2530

Track Ground Contact Length (mm) 1650

Total Track Length (mm) 2105

Track Shoe Width (mm) 300

Total Track Width (mm) 1740

Track Gauge (mm) 1440

Minimum Ground Clearance (mm) 290

Minimum Swing Radius of Front Working Device (mm) 2080

Rear Swing Radius (mm) 950

Working Range:

Maximum Digging Radius (mm) 5360

Maximum Digging Radius at Ground Level (mm) 5225

Maximum Digging Depth (mm) 3170

Maximum Digging Height (mm) 3530

Maximum Dumping Height (mm) 3530

Maximum Vertical Digging Depth (mm) 2720

Bulldozer Blade Lift/Push Depth (mm) 360/390

Descriptions

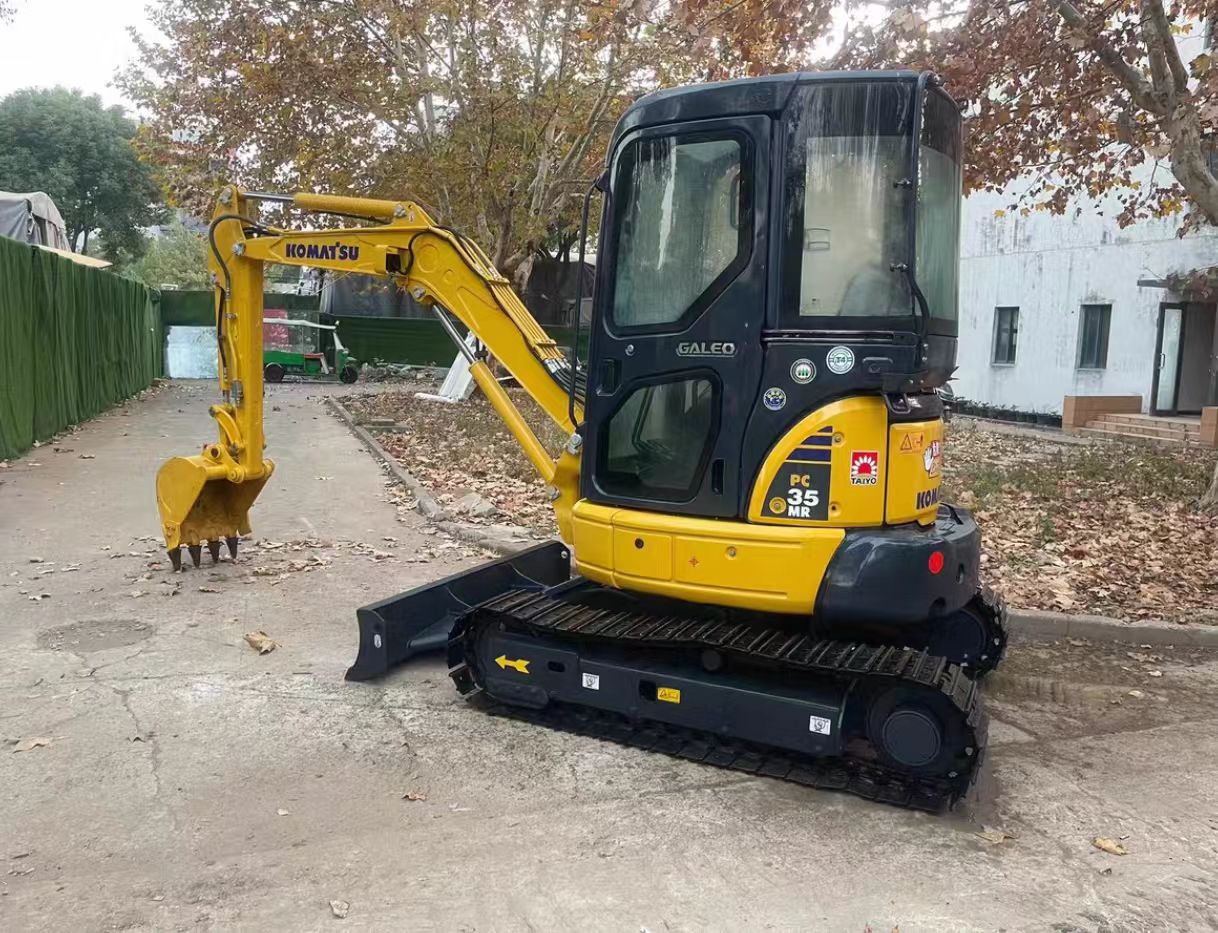

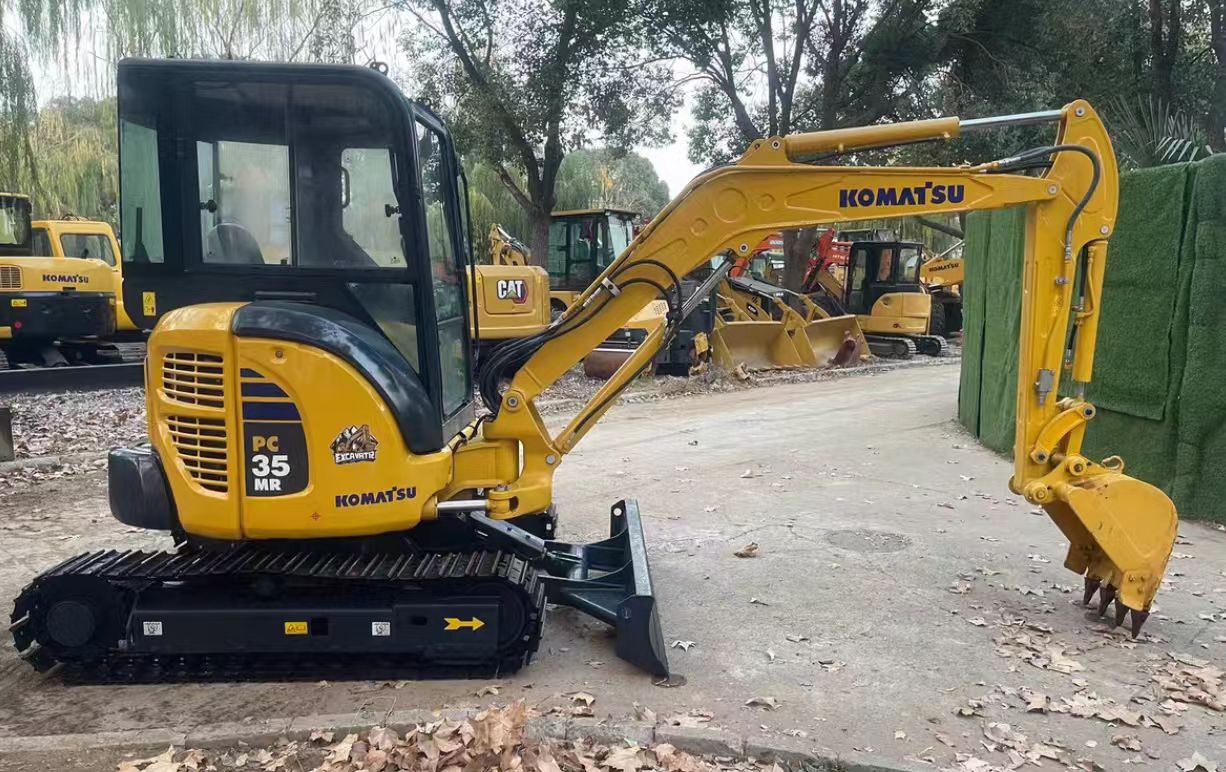

The KOMATSU PC35MR mini excavator features a tailless design for 360-degree rotation in tight spaces. Its boom swing function allows for precise digging along obstacles, and the rubber blocks on its tracks ensure minimal ground damage during operation.

VIDEO:

used excavator KOMATSU pc35MR

https://youtube.com/shorts/vJ_QistCEyU?feature=share

https://www.youtube.com/channel/UCH06HI_iyRqXFMZGPj4uM9Q
