The operation video of this excavator is below the specifications. ↓

Specifications

Tonnage (tons) 3

Working weight of the whole machine (kg) 3648

Bucket capacity (m³) 0.08

Performance:

Rotational speed (rpm) 9

Walking speed (km/h) 3.0/4.6

Climbing ability (%) 30°

Bucketer digging force (kN) 29.5

Power System:

Engine model D1703-E4

Rated power (kW/rpm) 18.5/2200

Displacement (L) 1.647

Hydraulic System:

Main pump type Variable pump *2 + Gear pump *2

Walking hydraulic motor type 2-speed plunger hydraulic motor

Swivel hydraulic motor type Column Cold Hydraulic Motor

Oil Capacity:

Fuel tank (L) 45.1

Main Dimensions:

Total transport length (mm) 4573

Total transportation width (mm)1550

Total transportation height (mm)2842

Total track length (mm) 2081

Caterpillar track width (mm)300

Minimum ground clearance (mm) 287

Scope of Work:

Maximum excavation radius (mm) 4951

Maximum digging depth (mm) 2825

Maximum digging height (mm) 4558

Maximum unloading height (mm) 3141

Maximum vertical digging depth (mm) 1988

Bull dozer width x height (mm) 1550*341

Bulldozer blade lift or push depth (mm) 366/375

Descriptions

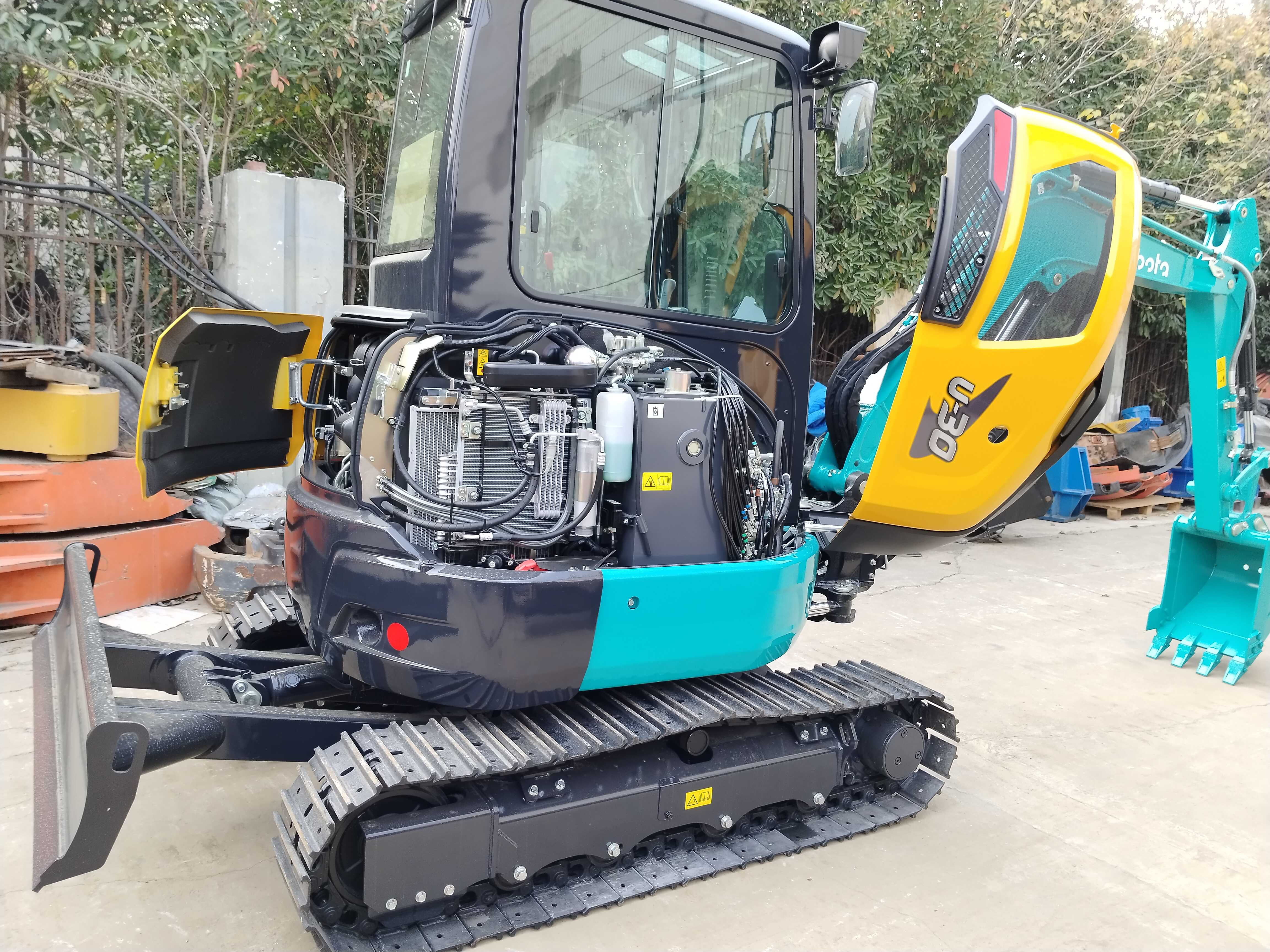

This KUBOTA U30 is a 99.99% new excavator in excellent condition with extremely high work efficiency. Featuring zero-tail boom swing and a host of advanced features as standard to deliver efficient performance and low operating costs.

VIDEO:

mini excavator KUBOTA U30
