The operation video of this excavator is below the specifications. ↓

Specifications

Tonnage (tons) 6

Machine working weight (kg) 5600

Bucket width (mm) 680/630

Bucket capacity (m²) 0.19

Performance:

Slewing speed (rpm) 9.3

Traveling speed (km/h) 2.7/4.6

Gradability (%) 30°

Bucket digging force (kN) 40.1

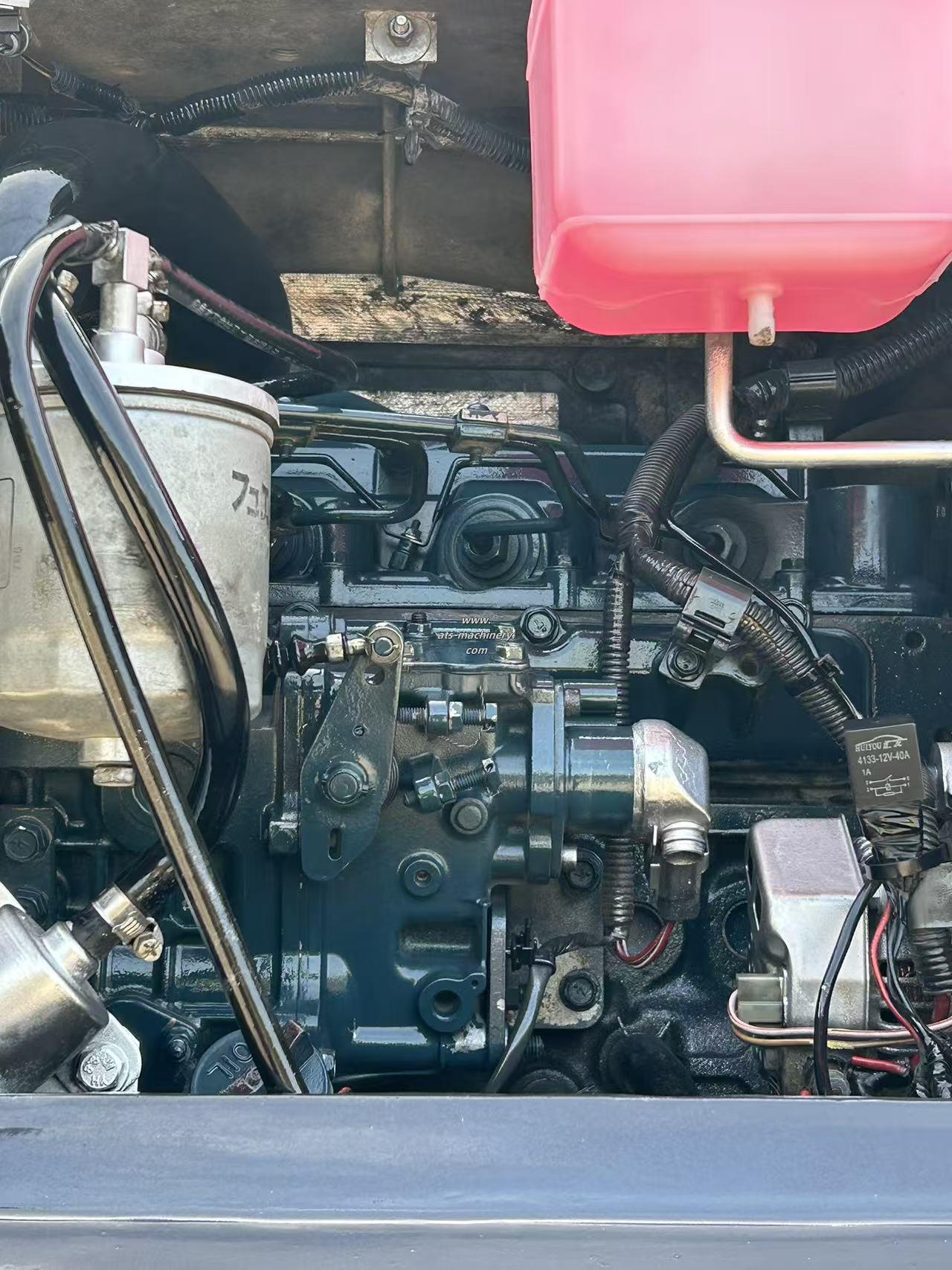

Power system:

Engine model V2607-E3

Rated power (kw/rpm) 35.5/2200

Displacement (L) 2.615

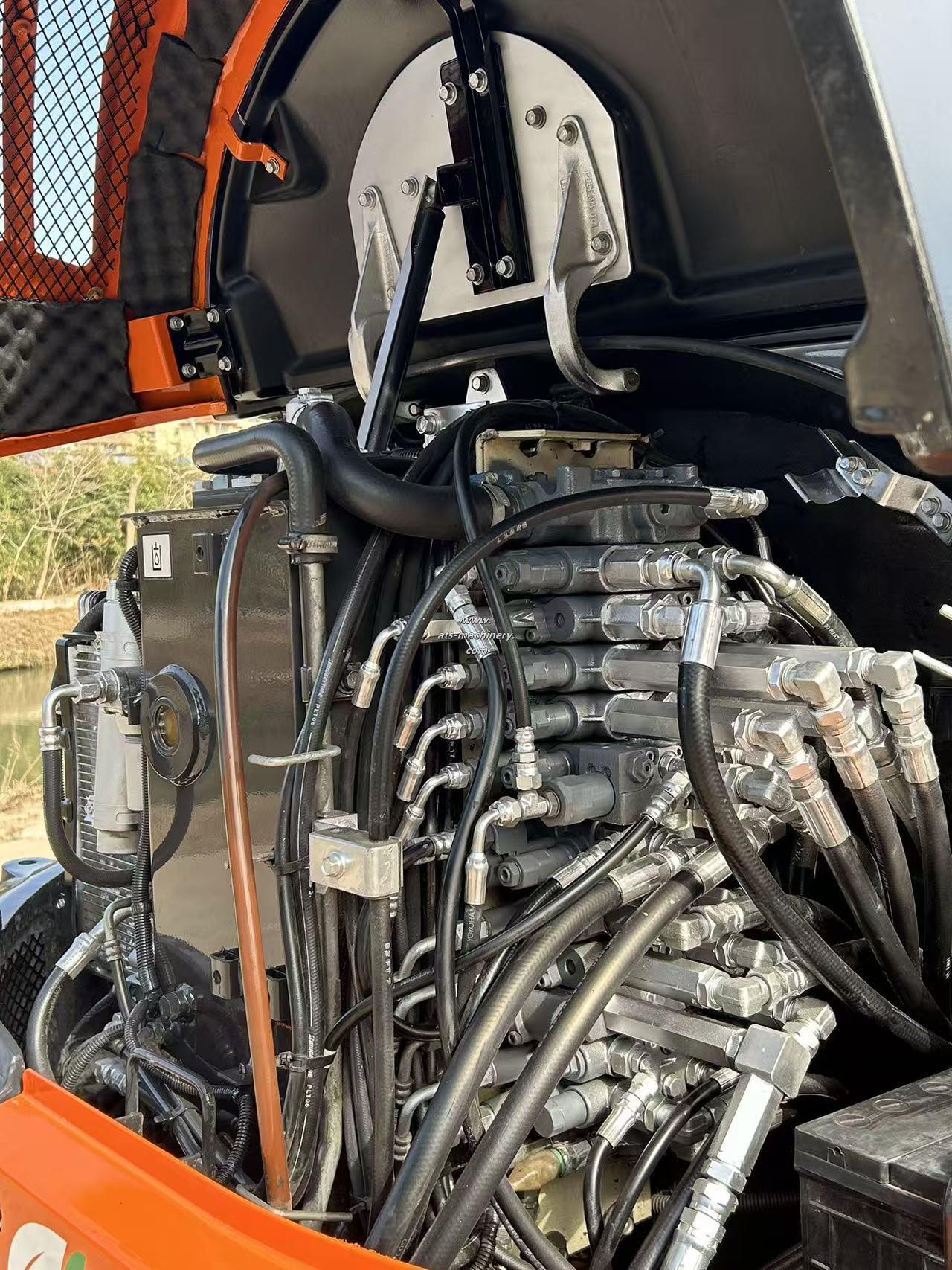

Hydraulic system:

Main pump type Variable pump 2+gear pump 2

Slewing hydraulic motor type

Piston hydraulic motor

Traveling hydraulic Motor type 2-speed plunger hydraulic motor

Oil capacity:

Fuel tank (L) 68

Main transport dimensions:

Total length for transportation (mm) 5500

Total width for transportation (mm) 1960

Total height for transportation (mm) 2550

Operating range:

Maximum digging radius (mm) 6140

Maximum digging depth (mm) 3690

Maximum digging height (mm) 5685

Maximum unloading height (mm) 3950

Maximum vertical digging depth (mm) 2685

Bulldozer blade width × height (mm) 1960*410

Bulldozer blade lifting or pushing depth (mm) 440/405

Descriptions

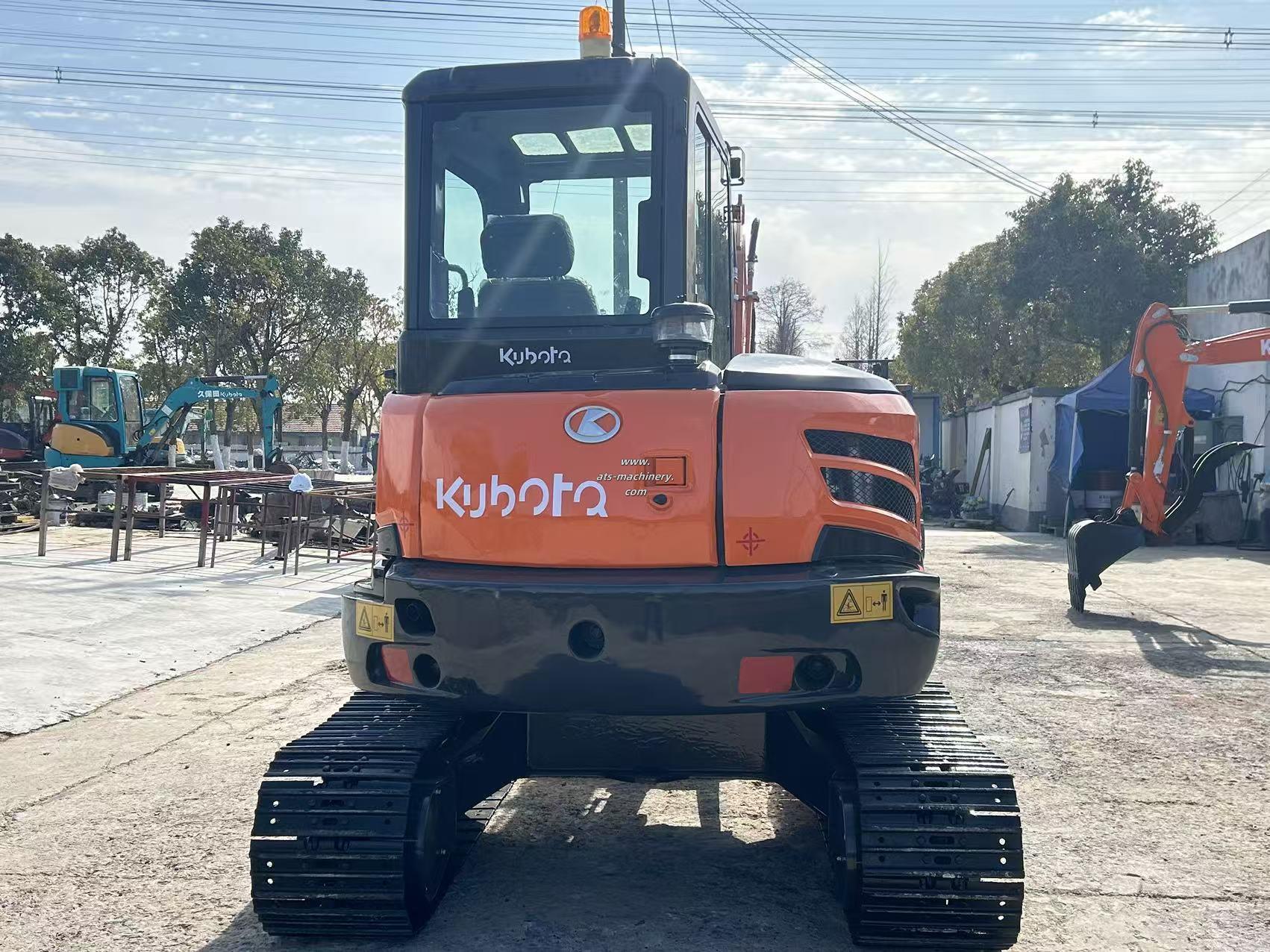

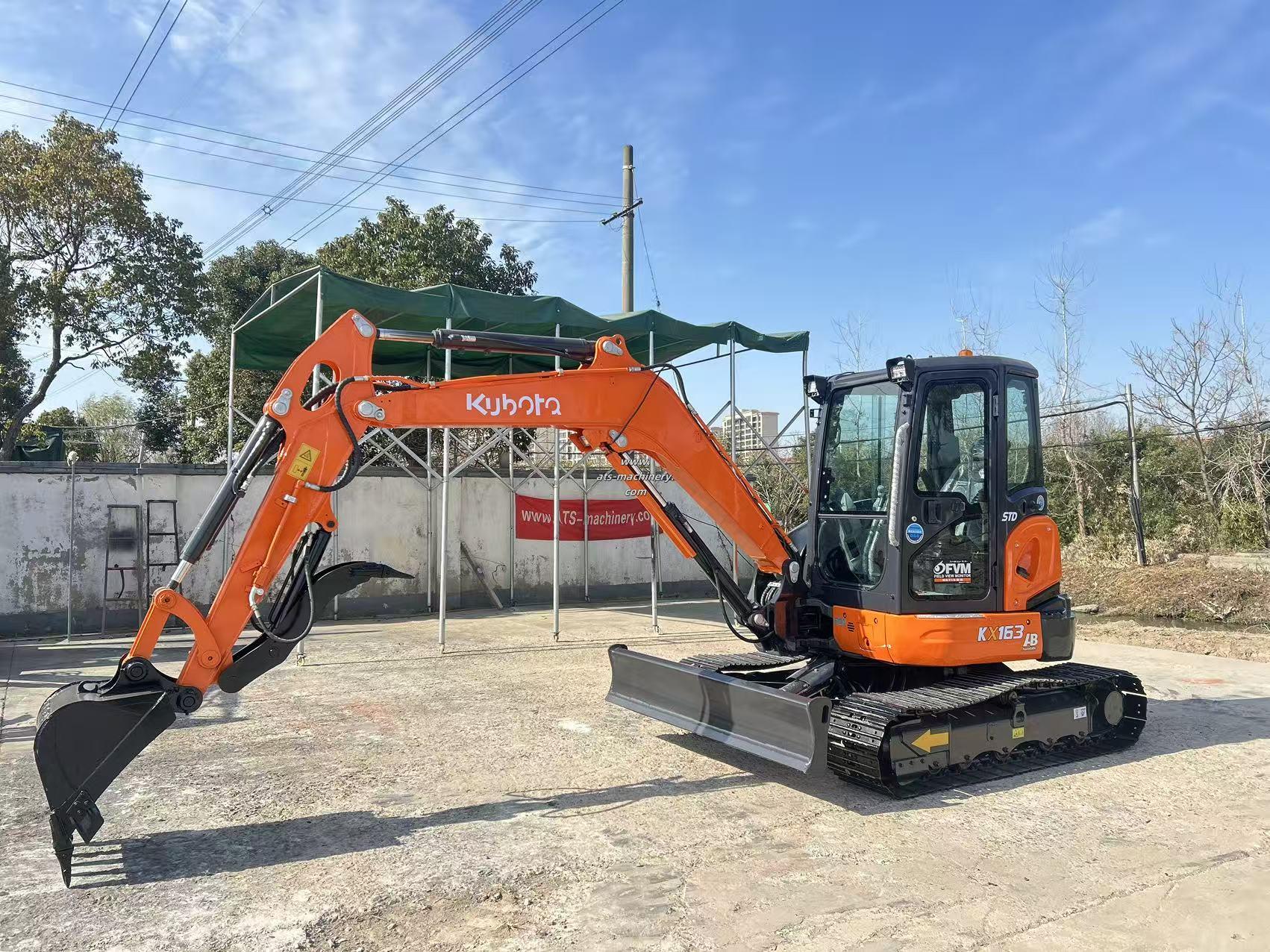

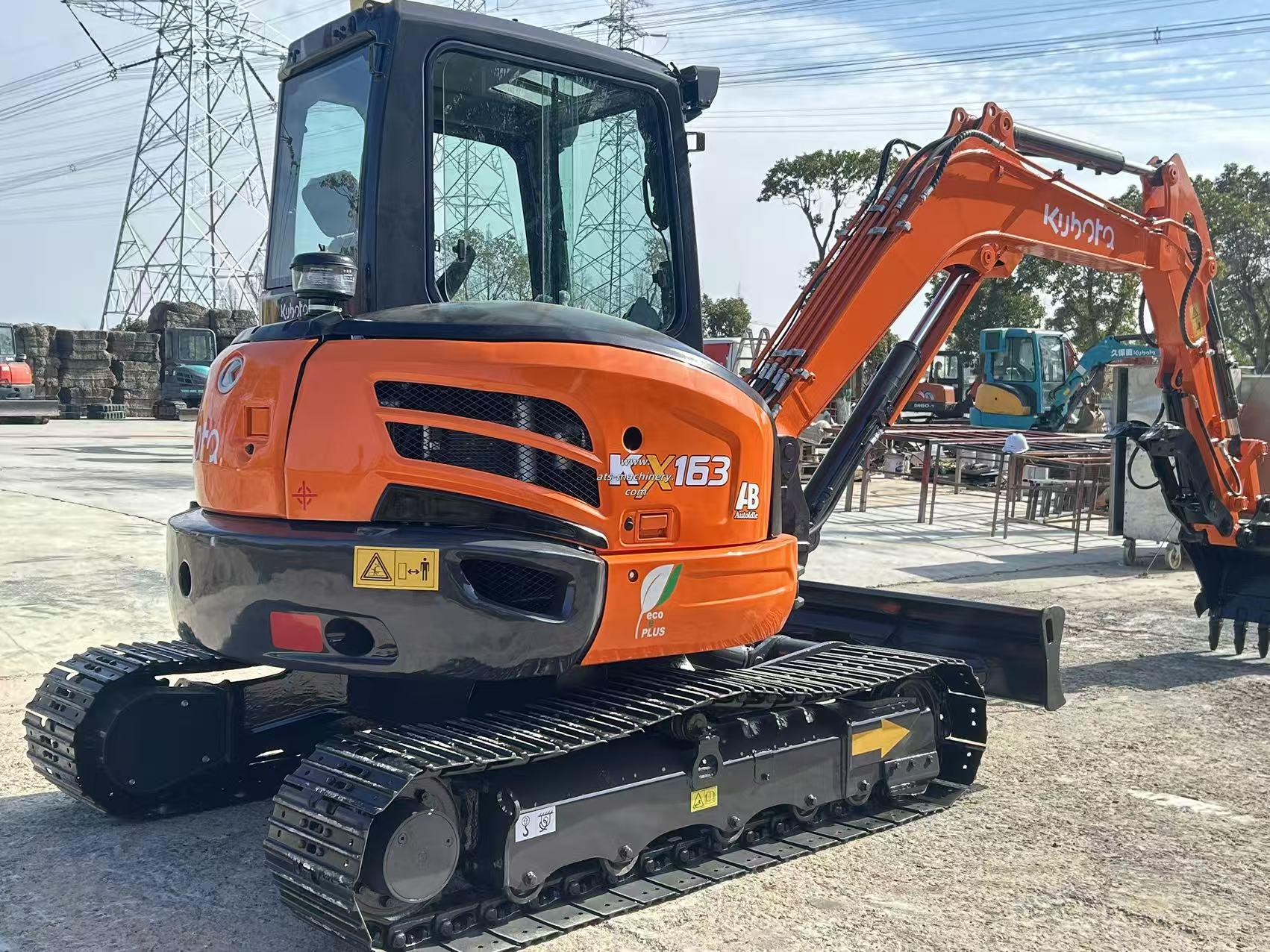

The KUBOTA KX163 excavator features a tailless design for 360-degree rotation in tight spaces. Its boom swing function allows for precise digging along obstacles, and the rubber blocks on its tracks ensure minimal ground damage during operation.

Video:

Used excavator KUBOTA kx163 tailless digger
