The operation video of this excavator is below the specifications. ↓

Specifications

Tonnage (tons) 4

Machine operating weight (kg) 3745

Bucket capacity (m³) 0.11

Performance:

Swing speed (rpm) 9.5

Travel speed (km/h) 4.5/2.7

Ground contact pressure (Kpa) 34.8

Bucket digging force (kN) 32.1

Power System:

Engine model 3TNV88

Rated power (kw/rpm) 20.4/2200

Number of cylinders 3

Cooling method Water-cooled

Working type Inline three-cylinder water-cooled direct-injection diesel engine

Fuel Capacities:

Fuel tank (L) 41

Main Dimensions:

Transport total length (mm) 4730

Transport total width (mm) 1740

Transport total height (mm) 2470

Track plate width (mm) 300

Minimum ground clearance (mm) 320

Minimum front working device turning radius (mm) 2020

Working Range:

Maximum digging radius on ground (mm) 5110

Maximum digging depth (mm) 3100

Maximum digging height (mm) 4960

Maximum dumping height (mm) 3560

Maximum vertical digging depth (mm) 2560

Boom swing angle (left/right °) Right 65° / Left 43°

Blade width × height (mm) 1740*380

Blade lift or pushing depth (mm) 425/370

Descriptions

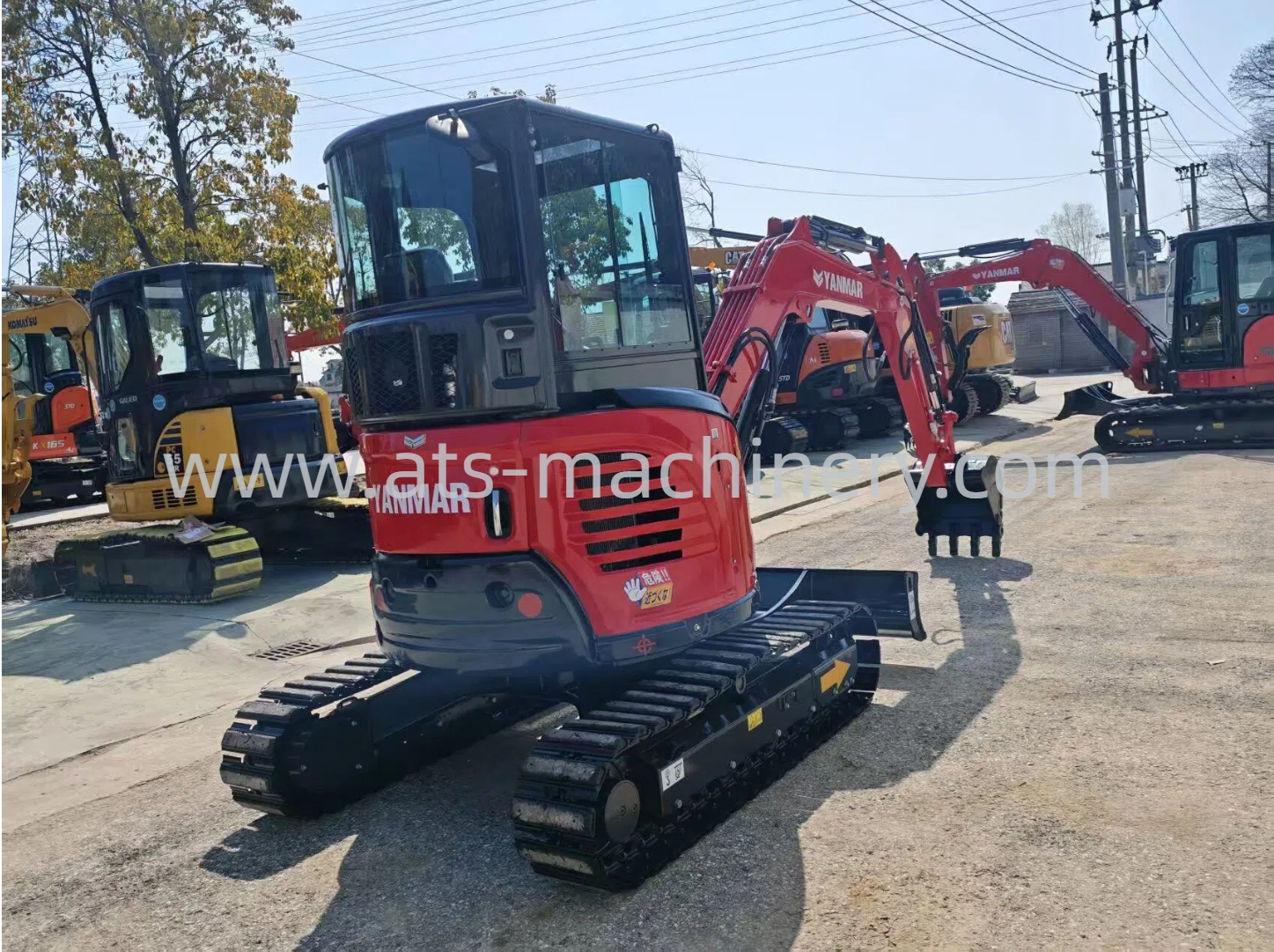

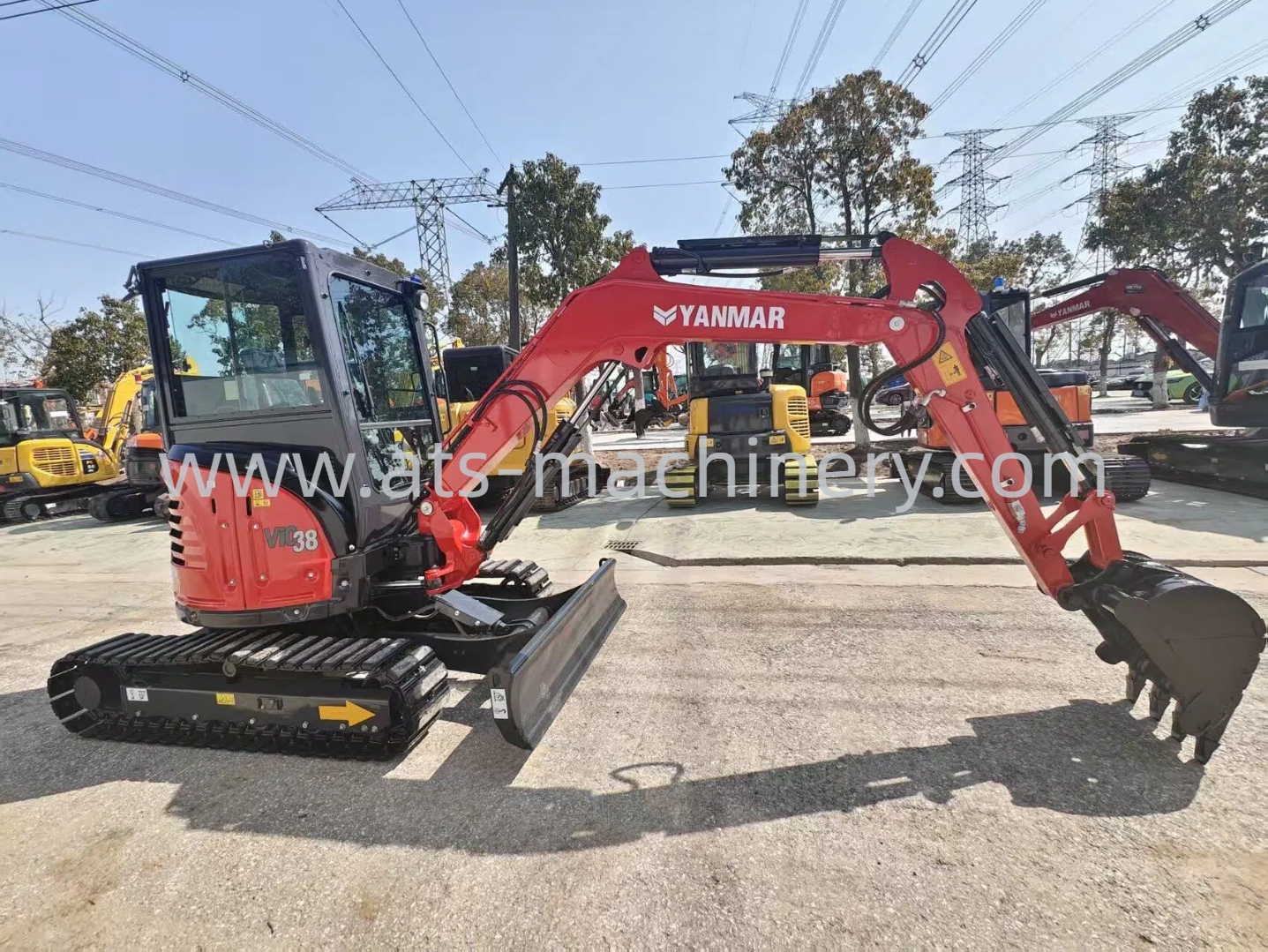

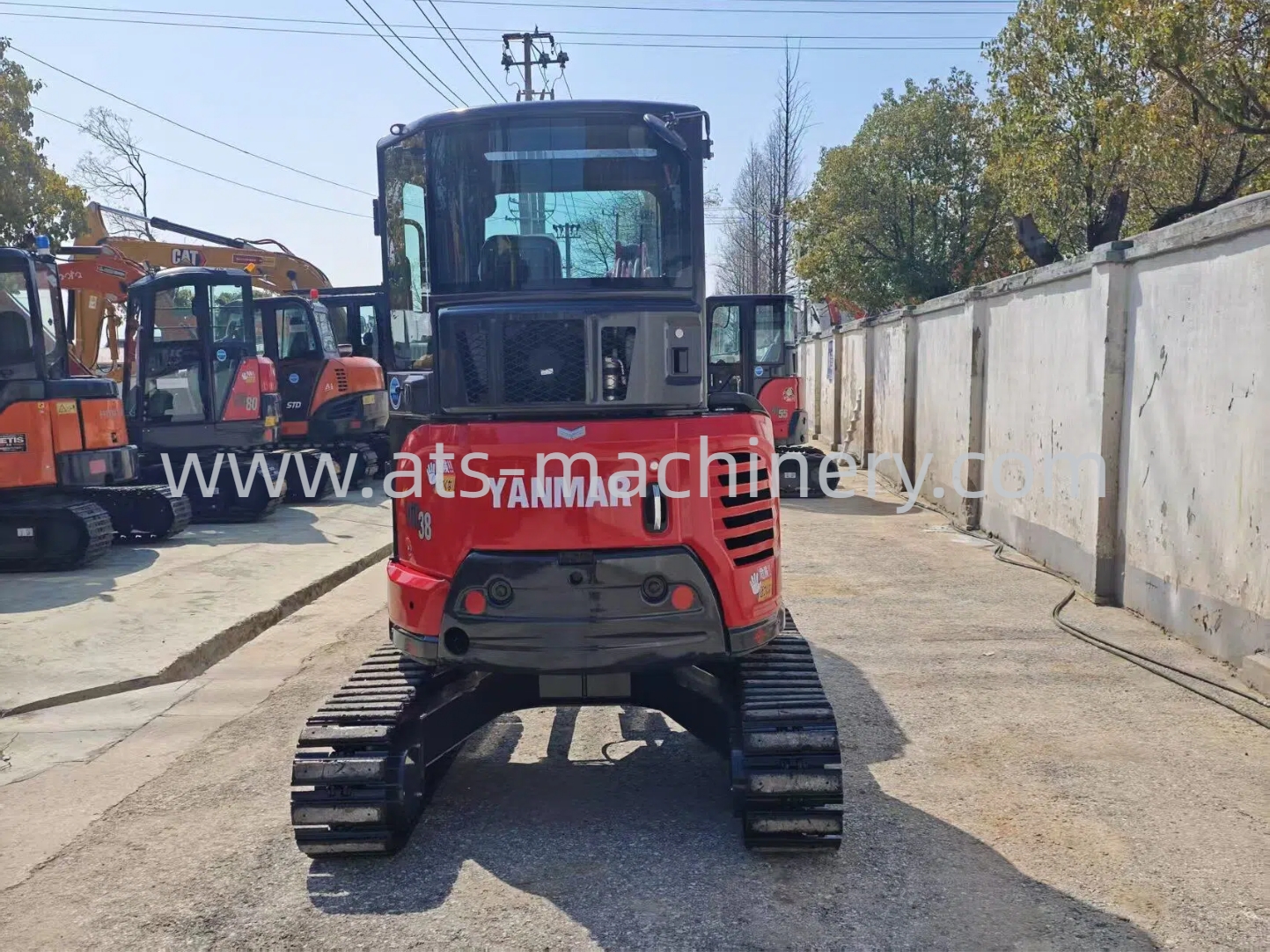

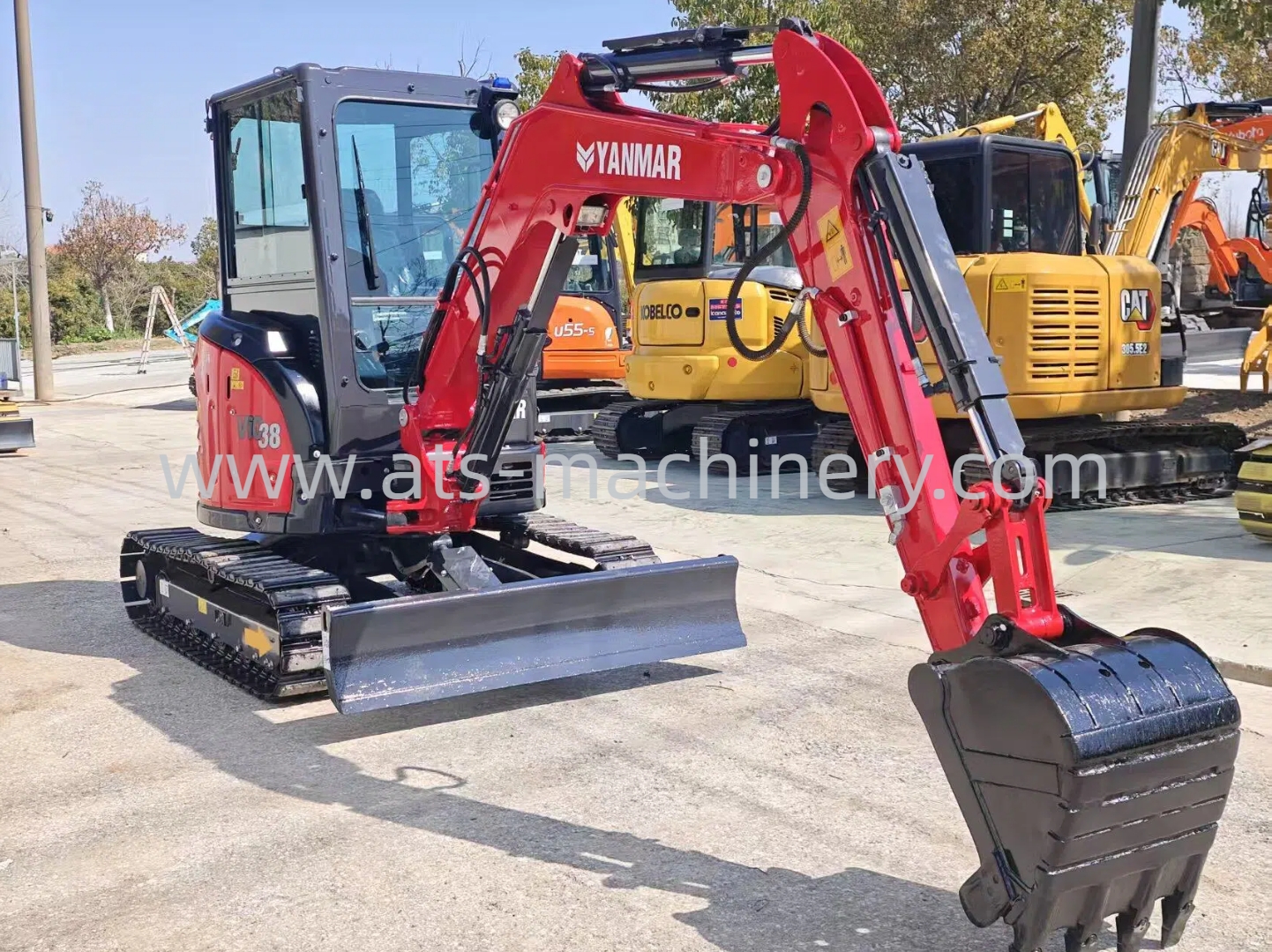

The Yanmar Vio38-6B is a compact excavator featuring a tailless design, which allows for safe and efficient operation in confined spaces without the risk of tail swing. Its key function includes a boom swing articulation, enabling the boom to move side-to-side for precise digging and enhanced flexibility around obstacles. This combination makes it an ideal machine for urban construction and landscaping projects where space is limited.

VIDEO:

Used excavator Yanmar 38
